Ref. APUL

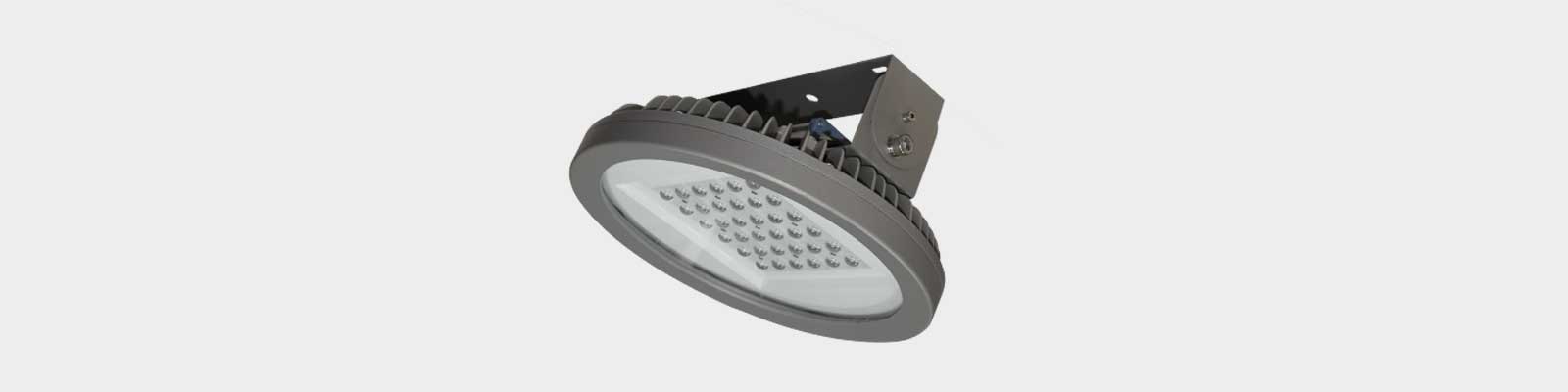

UFO LED Projector

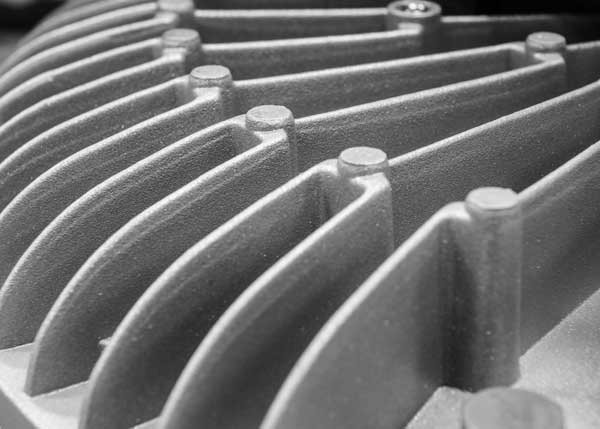

Body
High pressure die-cast aluminum. 4-mm tempered glass.

Screws
Stainless steel bolts.

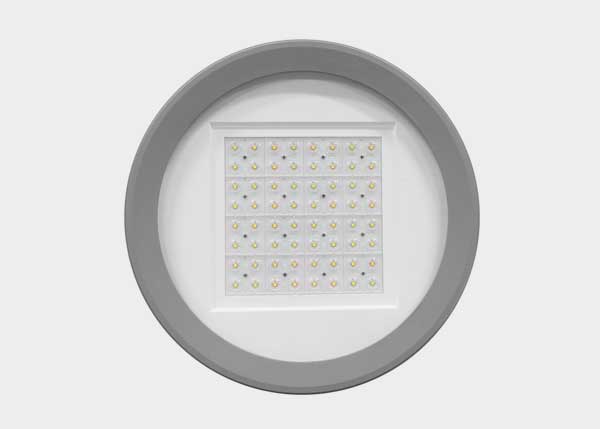

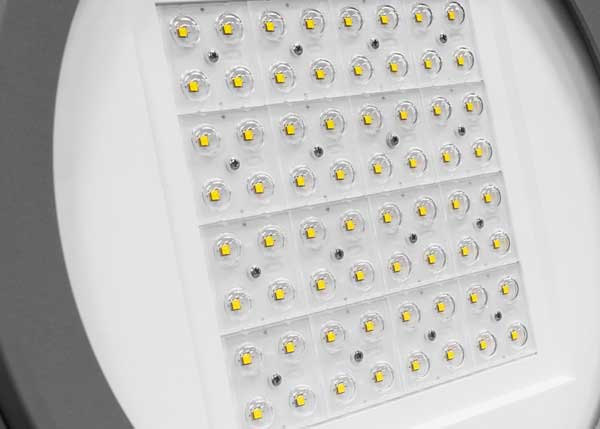

Optic bloc
NOVATILUX module in 1 format (36 LEDs). Consult for color temperatures and light distributions.

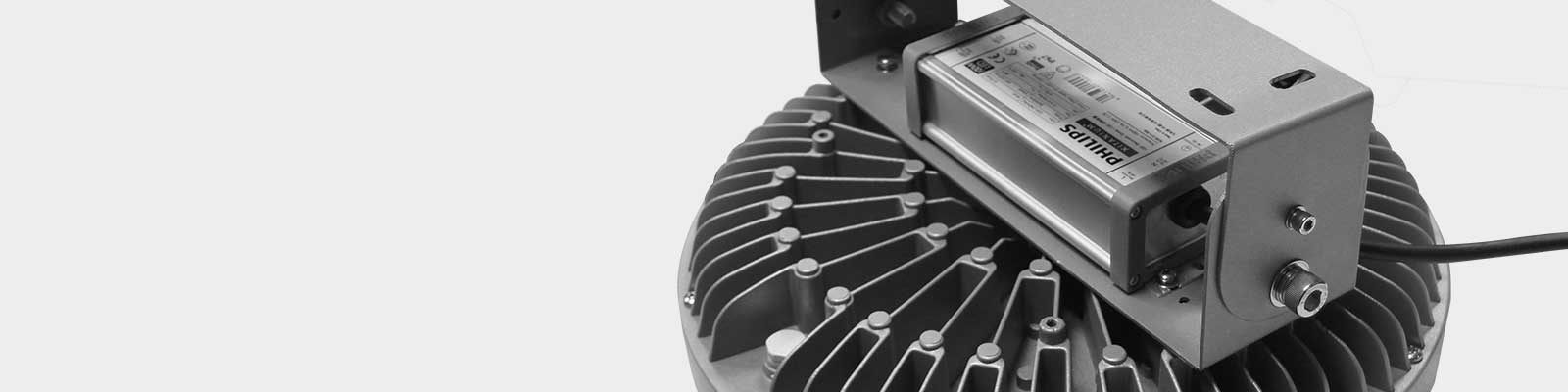

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired onto the luminaire structure. Class II.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
-

Light source
LED: 60-100 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.

Mounting Height
4 - 12 m.

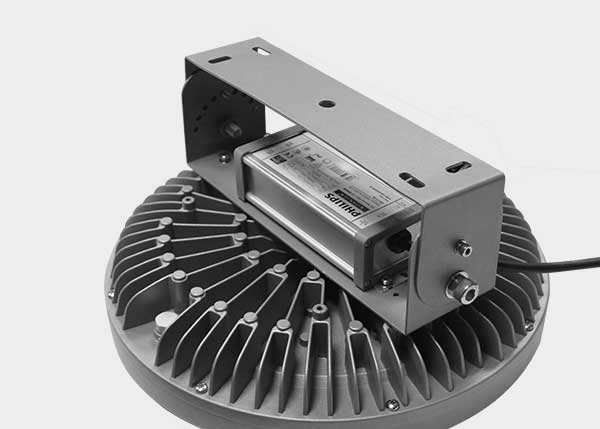

Attachment
Painted steel post top mounting.

Adjustable
Adjustable luminaire with tilt range from -90º to 90º from center point.

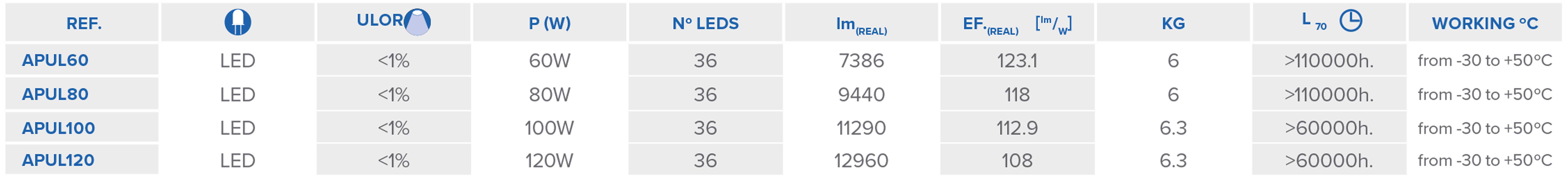

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,

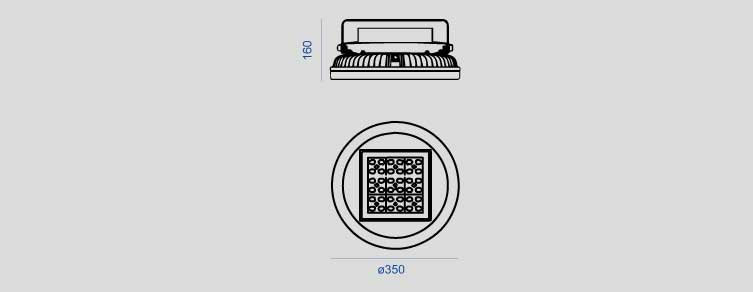

Dimensions

Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,

Downloads

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • IP65
    IP65
  • Ground
    Ground
  • Class II
    Class II
  • IP65
    IP65

Locations

Colors

  • RAL 9007
    RAL 9007

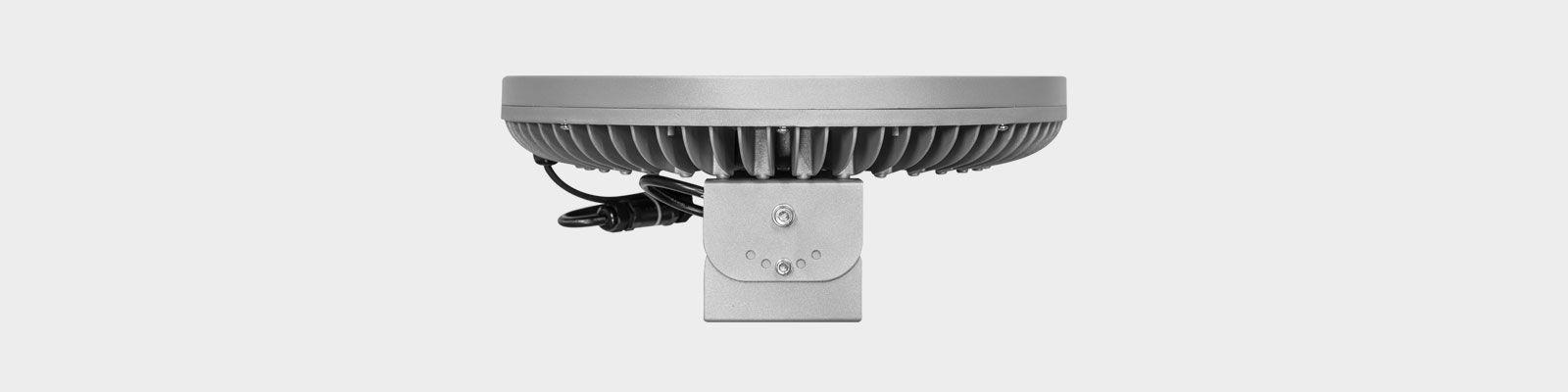

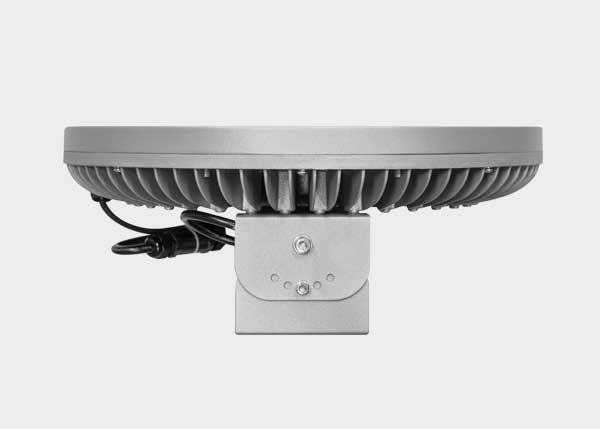

Details and View

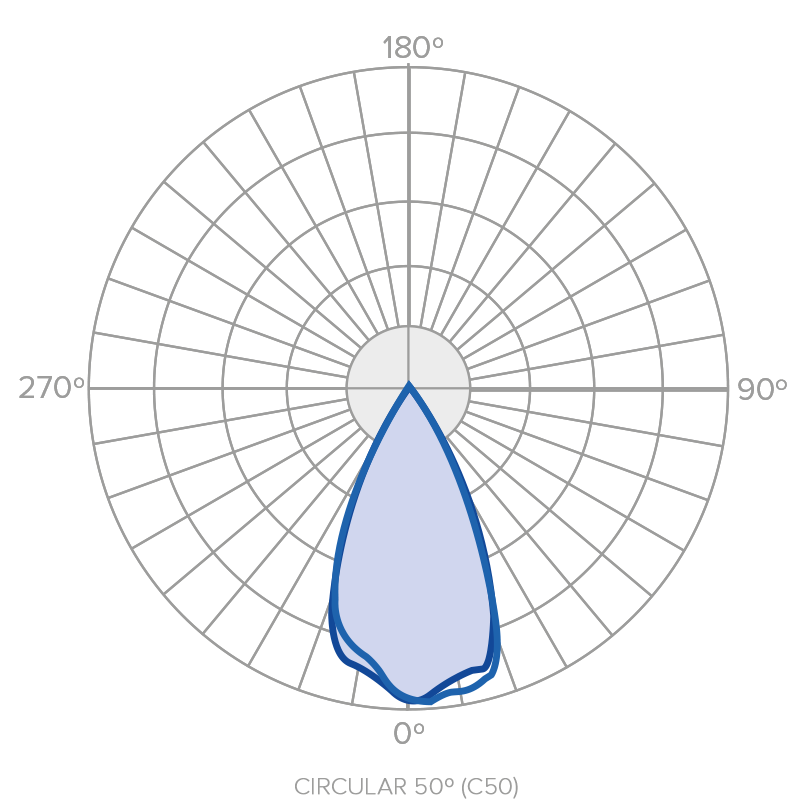

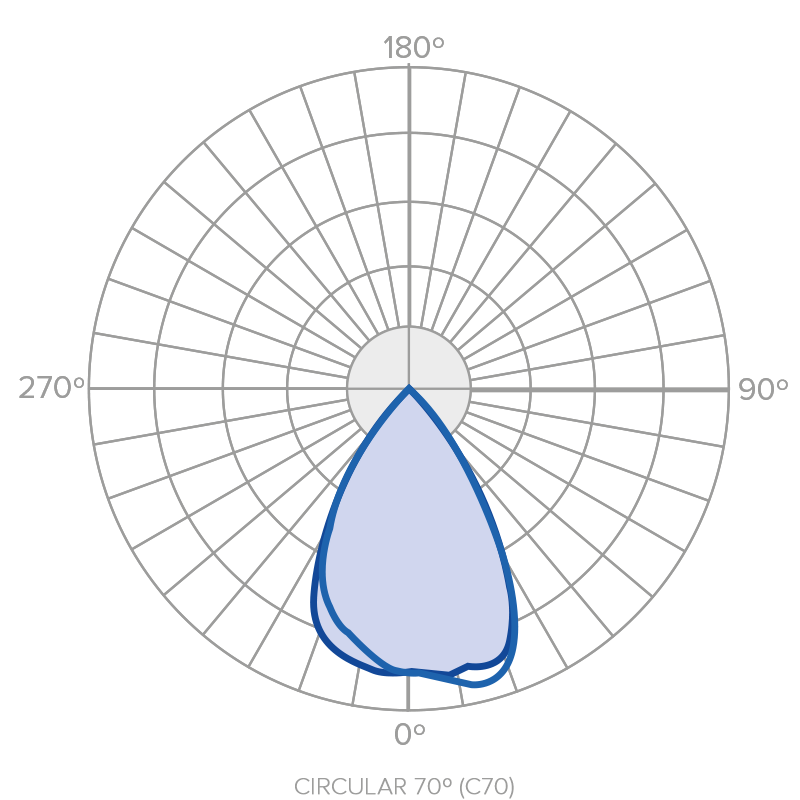

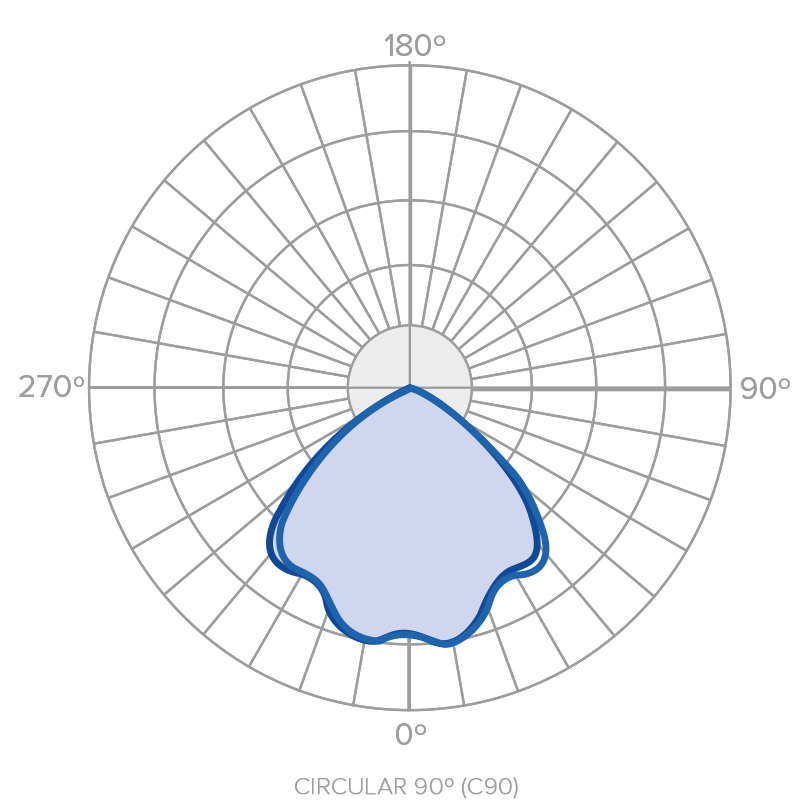

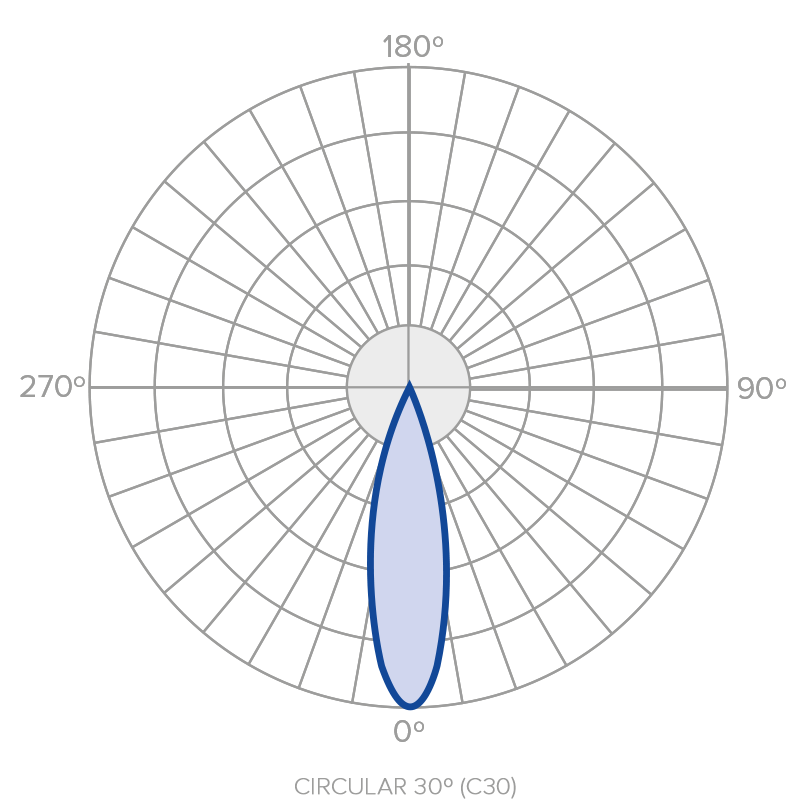

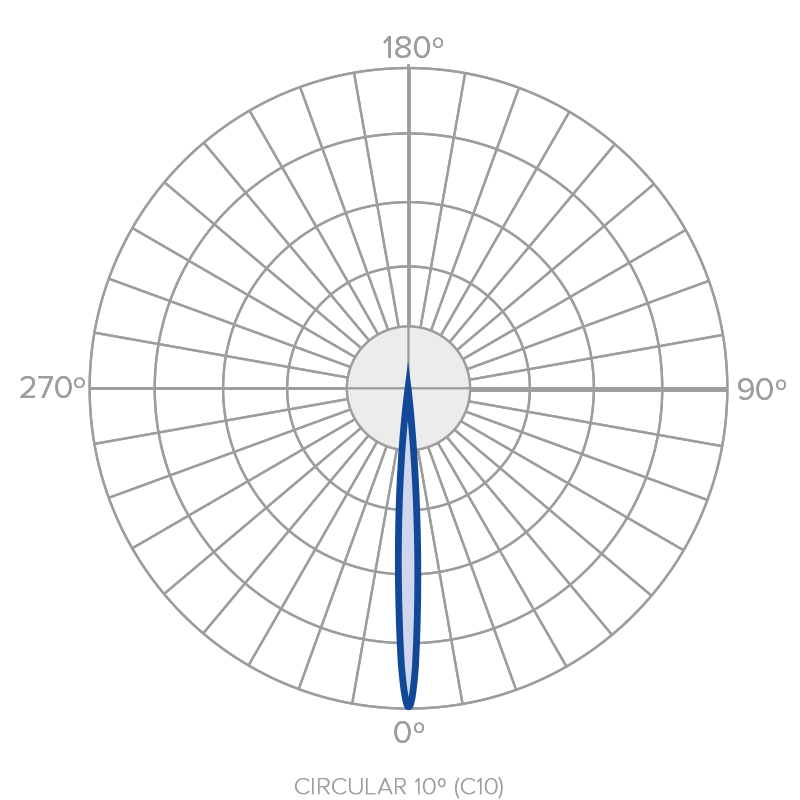

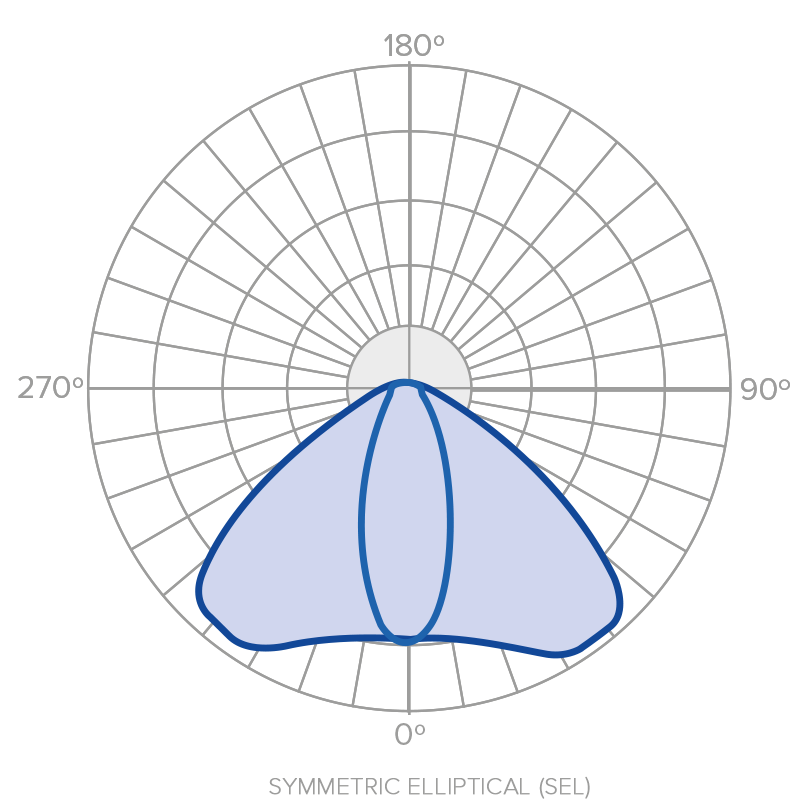

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,
  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,
  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,
  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,
  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,
  • Public lighting with LED luminaires for outdoor lighting , Projectors , APUL UFO LED Projector ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
