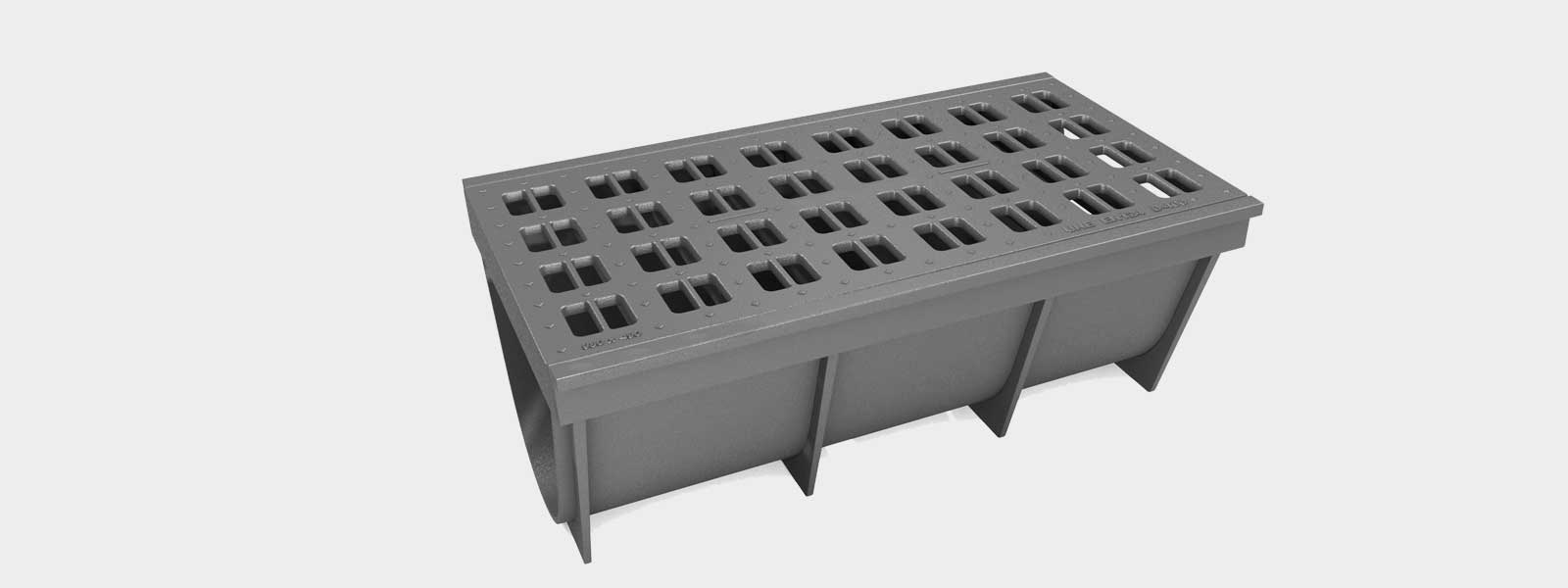

Ref. TCR50

TCR50

  • Channel made of spheroidal graphite ductile iron, as per ISO 1083 (Type 500-7) and standard EN 1563.
  • Complies with European standard UNE EN-124.
  • Metal non-slip surface.
  • Coated with non-toxic, non-flammable and environmentally safe black paint.
  • Optional : Fixing system between the channel and the grate.

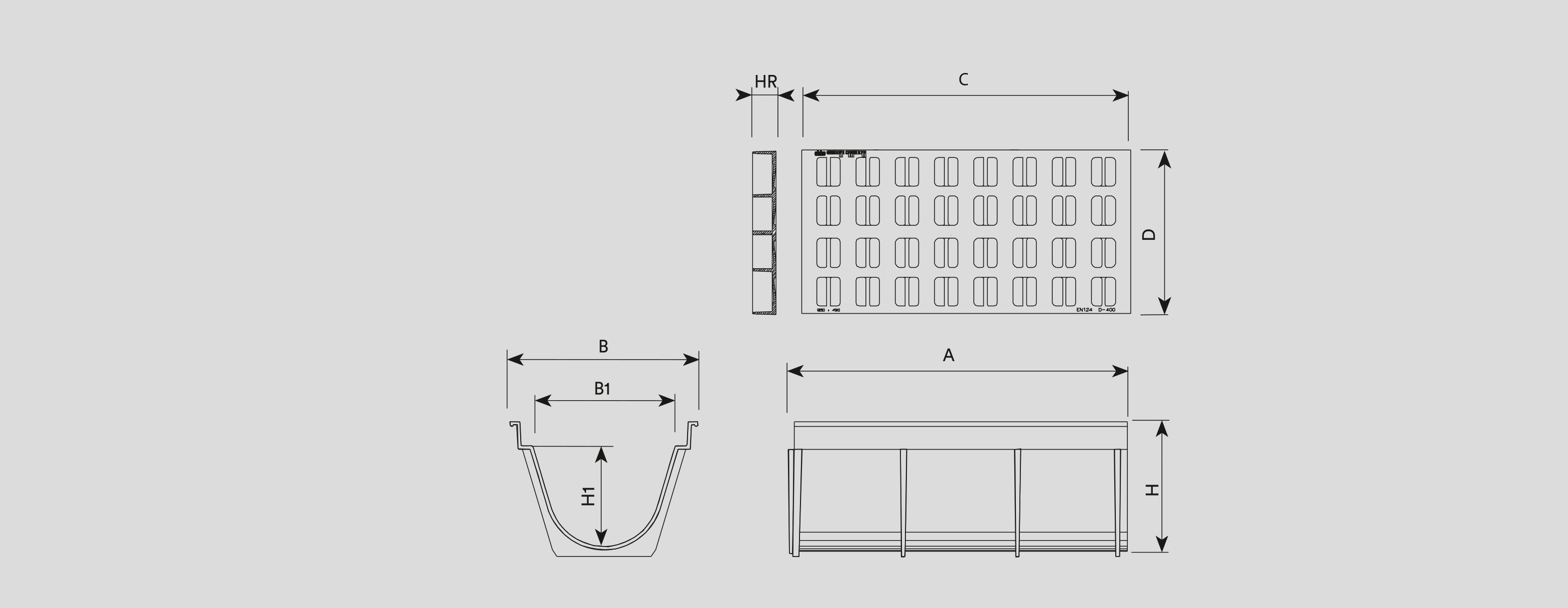

Dimensions

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Channels and drains , TCR50 TCR50 ,
  • CLASS - D400
  • A-980mm
  • B-550mm
  • B1-415mm
  • H-395mm
  • H1-300mm
  • C-980mm
  • D-490mm

Specifications

  • D-400
    D-400
