Ref. TPH
Bita
Manufacturing:

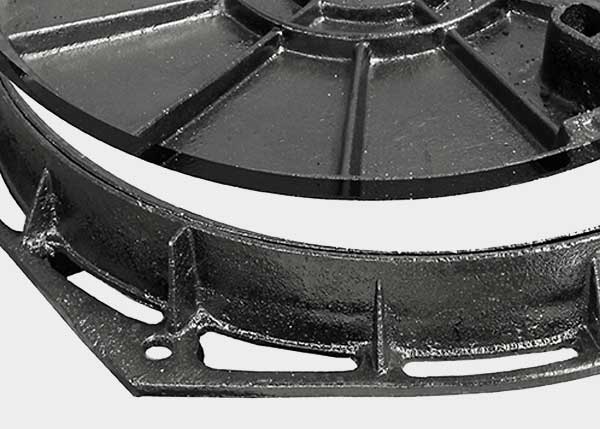

Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Specially designed for pedestrian ways and parks. Concreted cover.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian ways), roadsides and parking areas for all type of vehicles.
Cover and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Specially designed for pedestrian ways and parks. Concreted cover.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian ways), roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- A-810mm
- C-645mm
- H-75mm
- P-600mm
TECHNICAL DATA
Downloads
Specifications
- D-400
