Ref. TP3
Del
Manufacturing:
Cover and frame assembly made of ductile cast iron.
Stability:

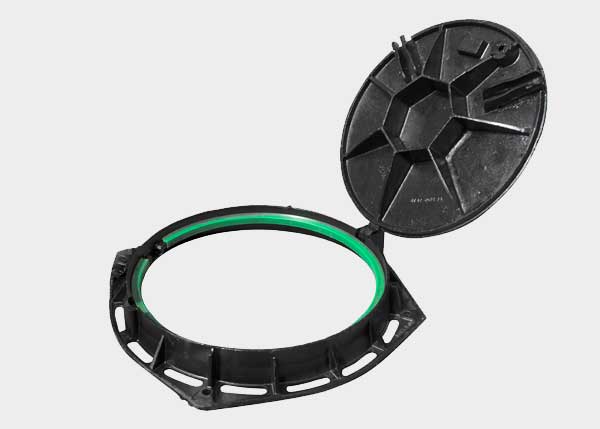

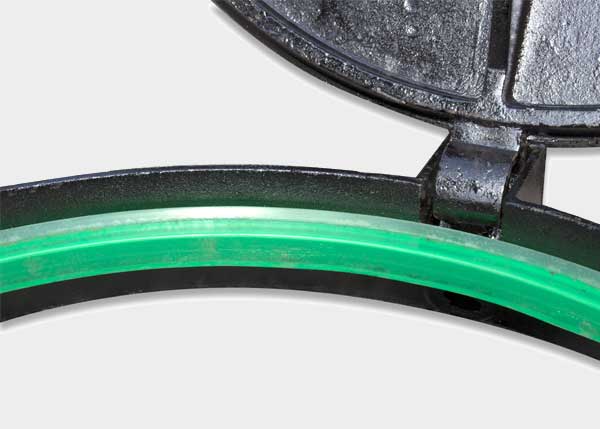

Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in the daily use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise. Specially designed for roadways with no heavy traffic.
Coating:

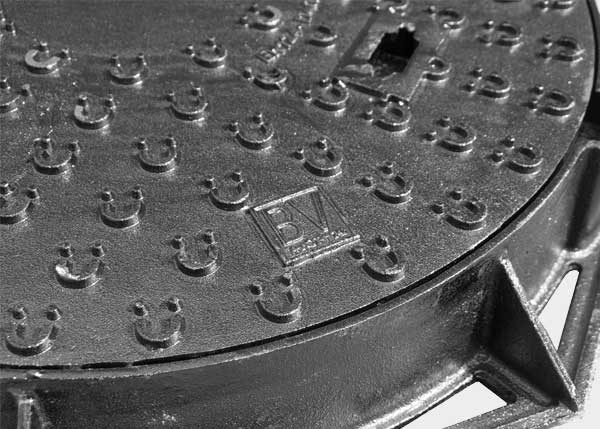

Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles.
Cover and frame assembly made of ductile cast iron.
Stability:
Hinged ergonomic system. Opening up to 120º and blockage at 90º. Elastic closing system for a higher safety in the daily use. Soundproofing gasket placed in the frame, ensuring a perfect stability and a total absence of noise. Specially designed for roadways with no heavy traffic.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadways, pedestrian ways, roadsides and parking areas for all type of vehicles.
Dimensions
- CLASS - D400
- A-850mm
- C-645mm
- H-100mm
- P-600mm
Downloads
Specifications
- D-400
Regulations
- UNE EN-124
