Ref. TAFO80
Fibra Optica
Manufacturing:

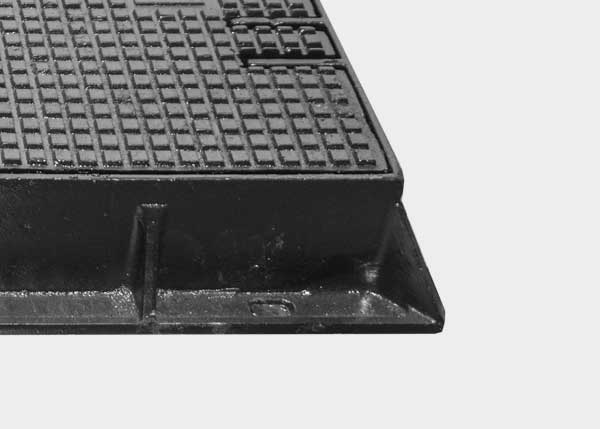

Covers and frame assembly made of ductile cast iron.
Stability:

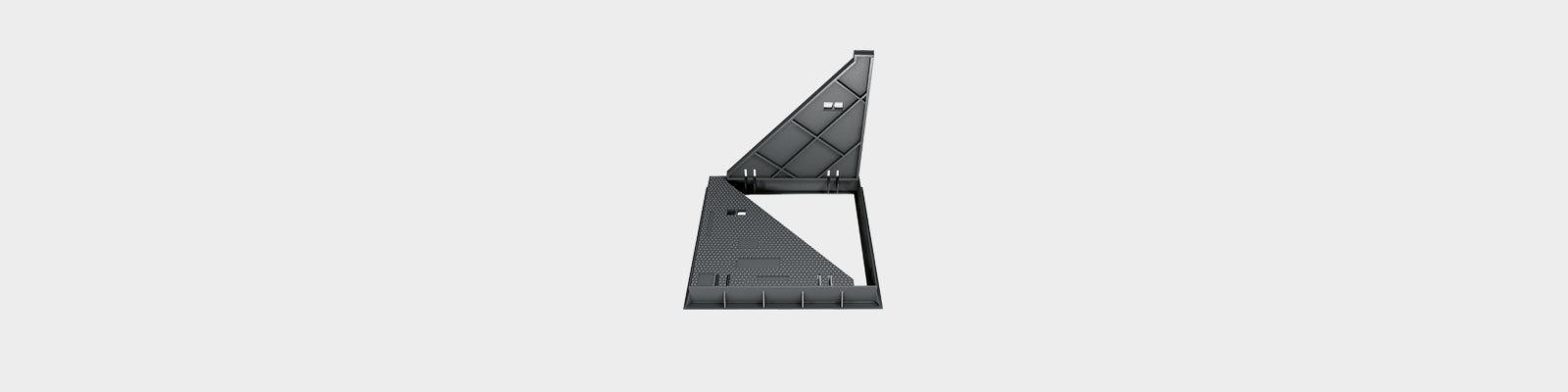

Opening ergonomic system through the cover rib using a crowbar. Set of two triangular covers. Opening covers are done by a triangular overlapping order. Doubled hinged ergonomic system. Opening up to 120º and a safety lock at 90º.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadsides, sidewalks, pedestrian areas and similar spaces, parking areas and car parks.
Covers and frame assembly made of ductile cast iron.
Stability:
Opening ergonomic system through the cover rib using a crowbar. Set of two triangular covers. Opening covers are done by a triangular overlapping order. Doubled hinged ergonomic system. Opening up to 120º and a safety lock at 90º.
Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.
Installation:
Class D400 EN-124. Group 4. Roadsides, sidewalks, pedestrian areas and similar spaces, parking areas and car parks.
Dimensions
- CLASS - D400
- A-870mm
- B-870mm
- H-100mm
- C-785mm
- D-700mm
- P-660mm
- P1-760mm
TECHNICAL DATA
Downloads
Specifications
- D-400
