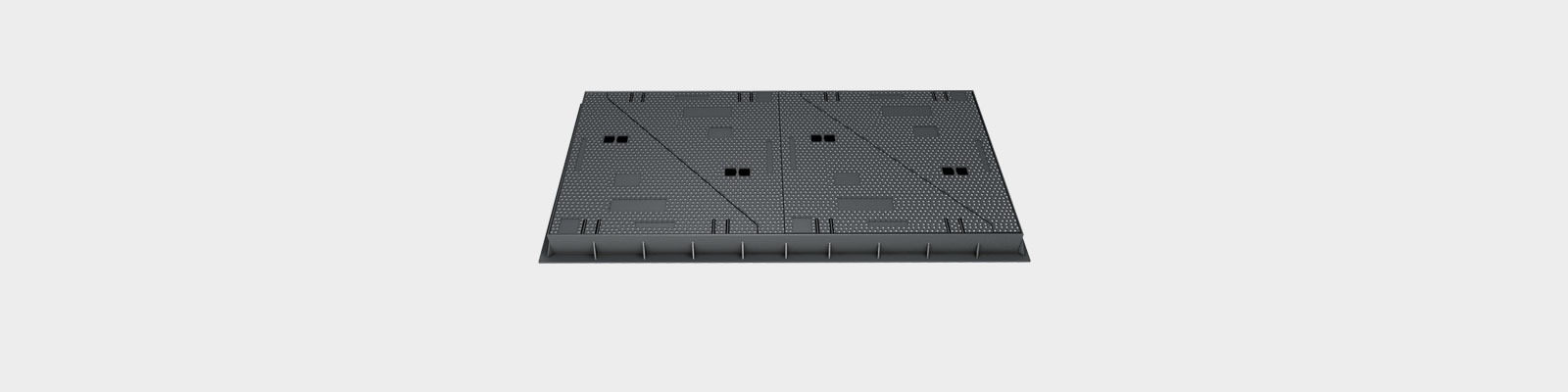

Ref. TAFO80D

Fibra Optica

Manufacturing:

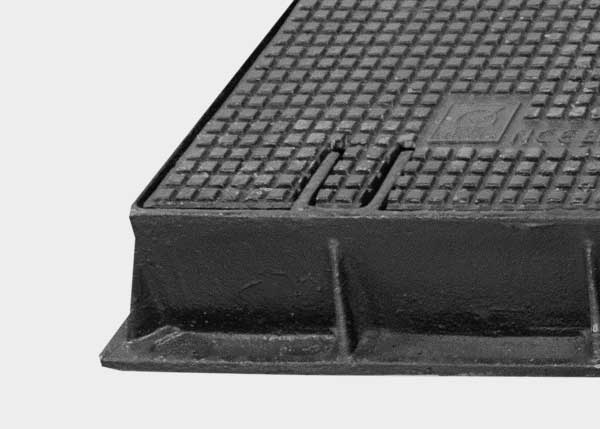

Cover and frame assembly made of ductile cast iron.

Stability:
Opening ergonomic system through the cover rib using a crowbar. Specially designed for pedestrian ways and parks. Concreted cover.

Coating:
Slippery-proof surface finished with water-soluble non toxic black painting.

Installation:
Class D400 EN-124. Group 4. Roadways (including pedestrian ways), roadsides and parking areas for all type of vehicles.

Dimensions

Covers and grates for sewage, manhole covers, cast iron, channels and sumps , Utility service manhole covers , TAFO80D Fibra Optica ,
  • CLASS - D400
  • A-870mm
  • B-1660mm
  • H-100mm
  • C-780mm
  • D-1575mm
  • P-780mm
  • P1-1540mm

Specifications

  • D-400
    D-400
