Ref. ACP
Cruceta Bracket
Description
Cruceta bracket is structural and functional, specially designed as a support for proyectors in line,and for poles with Ø60 mm end.
Material
Manufactured in galvanized steel S-325-JR by hot inmersion.
Finishing
Galvanized by hot inmersion (G) Finishing in black painting optional, average thickness of 90?m ± 10?m (UNE 48031).
Place of installation
Bracket specially designed to be installed city centers, functional streets, residential and pedestrian areas, parks and gardens.
Fixing
By 3 hexagon socket screws M10.
Input bracket end
Ø60 mm.
Bracket end
Adapted to projectors with bracket.
Cruceta bracket is structural and functional, specially designed as a support for proyectors in line,and for poles with Ø60 mm end.
Material
Manufactured in galvanized steel S-325-JR by hot inmersion.
Finishing
Galvanized by hot inmersion (G) Finishing in black painting optional, average thickness of 90?m ± 10?m (UNE 48031).
Place of installation
Bracket specially designed to be installed city centers, functional streets, residential and pedestrian areas, parks and gardens.
Fixing
By 3 hexagon socket screws M10.
Input bracket end
Ø60 mm.
Bracket end
Adapted to projectors with bracket.

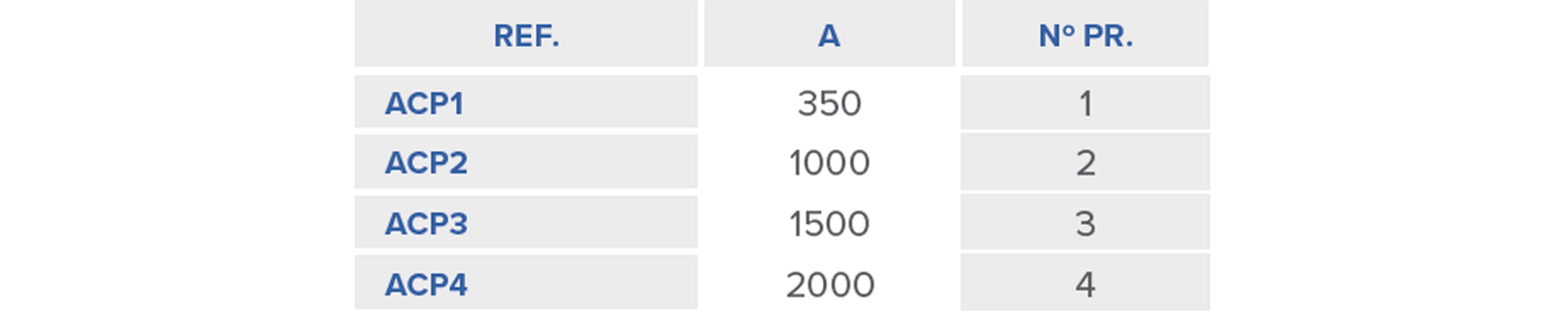

TECHNICAL DATA

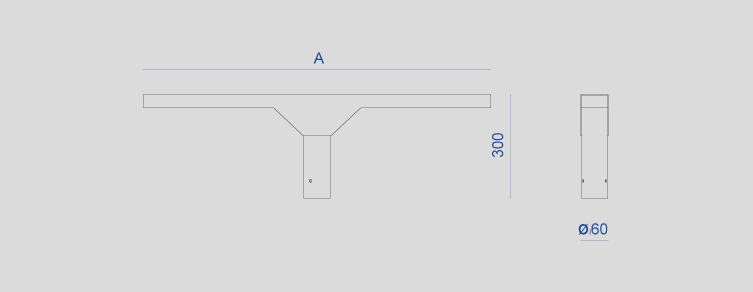

Dimensions
Downloads
Locations
- City and suburbs
- Playgrounds and rural areas
-
