Ref. ALRL

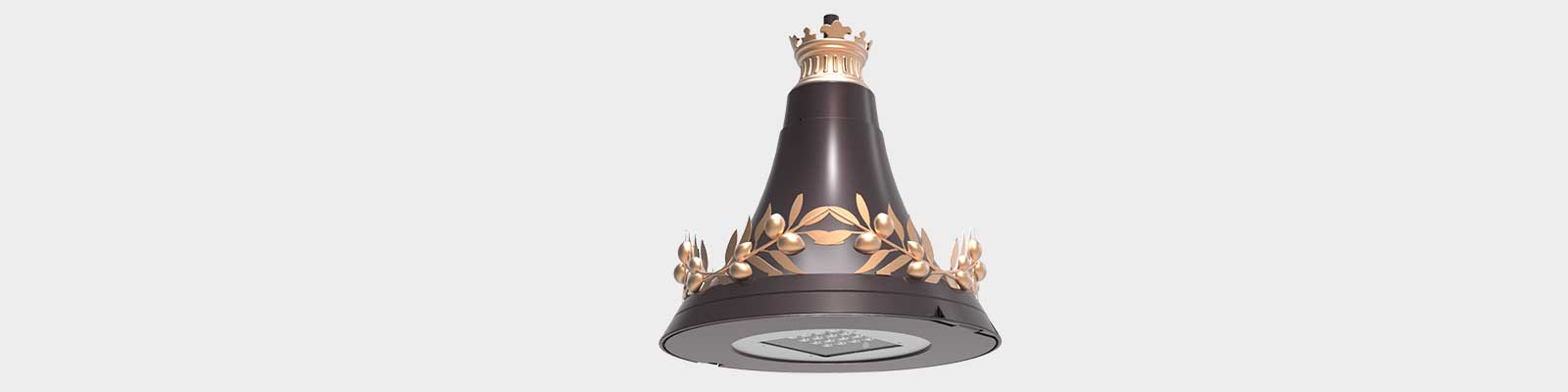

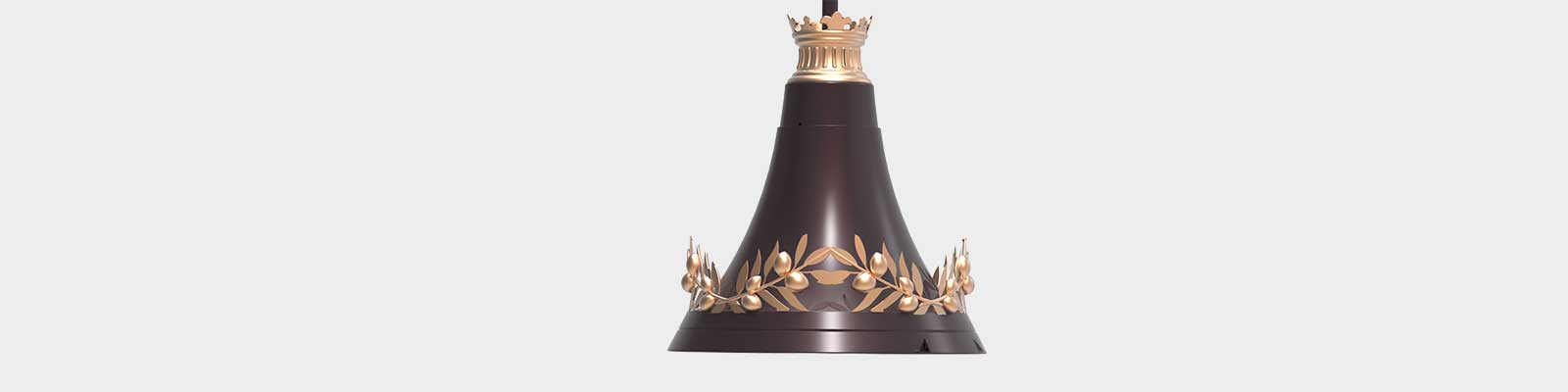

Reel Led luminaire
Body
High pressure die-cast aluminum. 4 mm tempered glass. Optional with flat or lenticular glass.
Screws
Stainless steel bolts.
Optic bloc

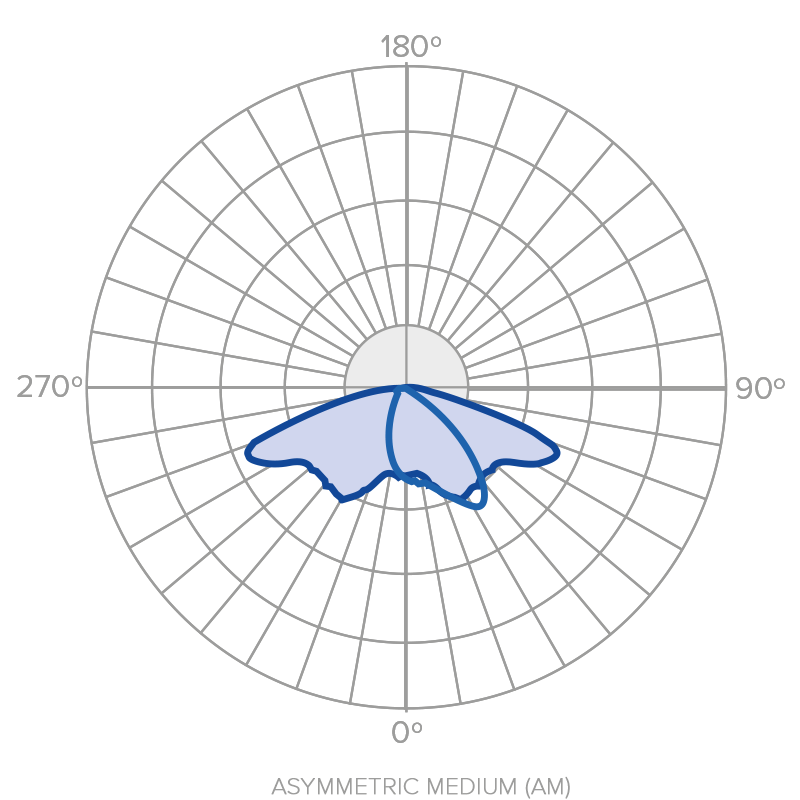

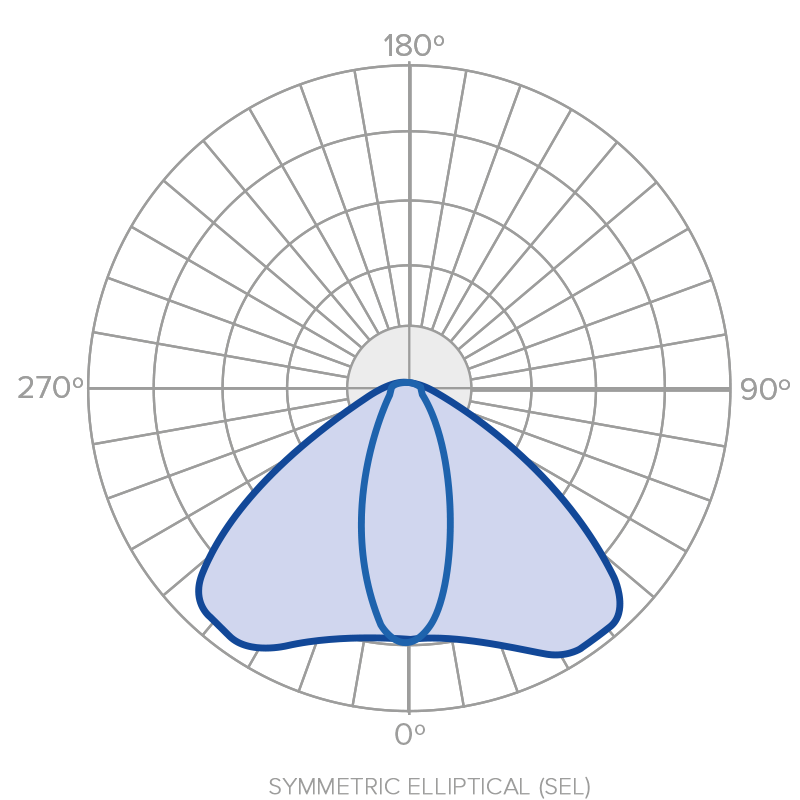

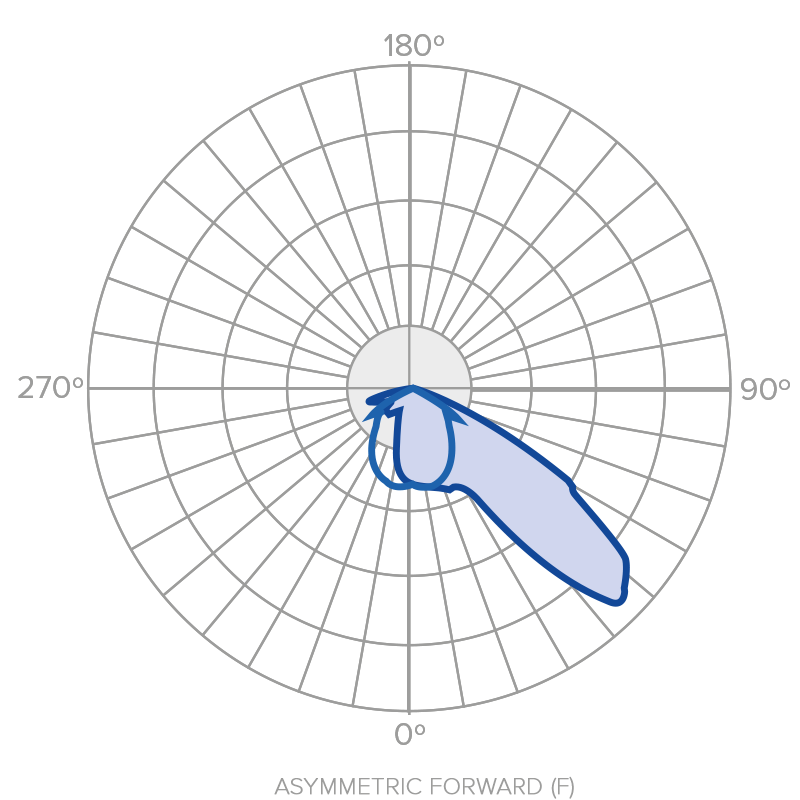

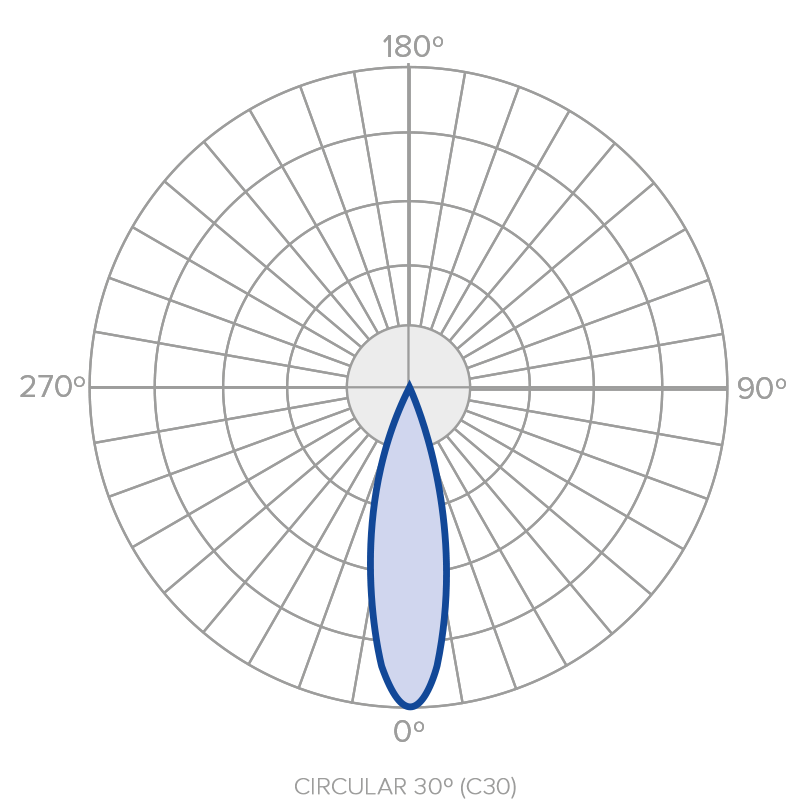

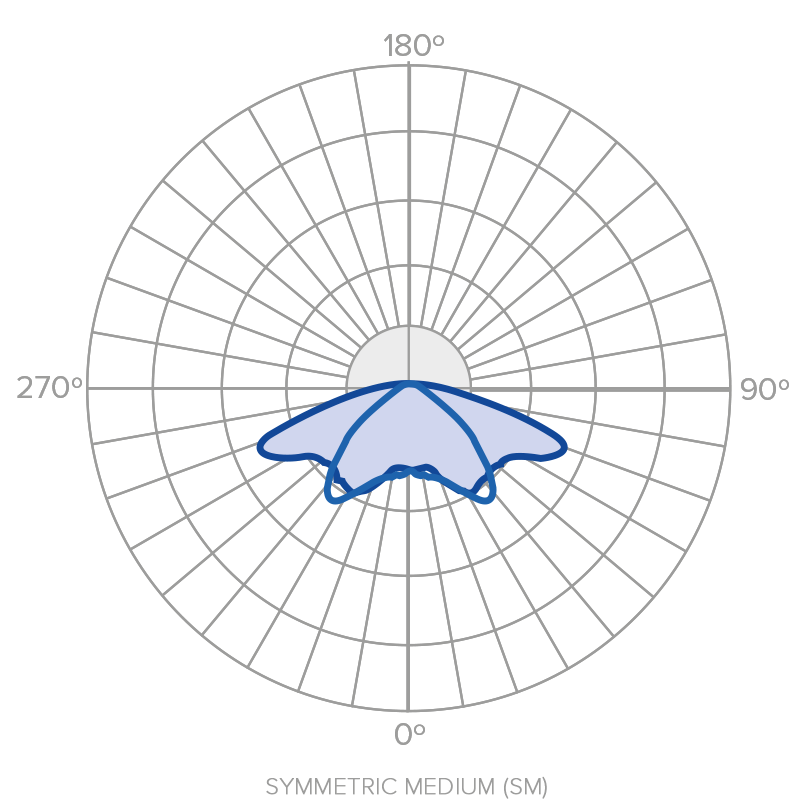

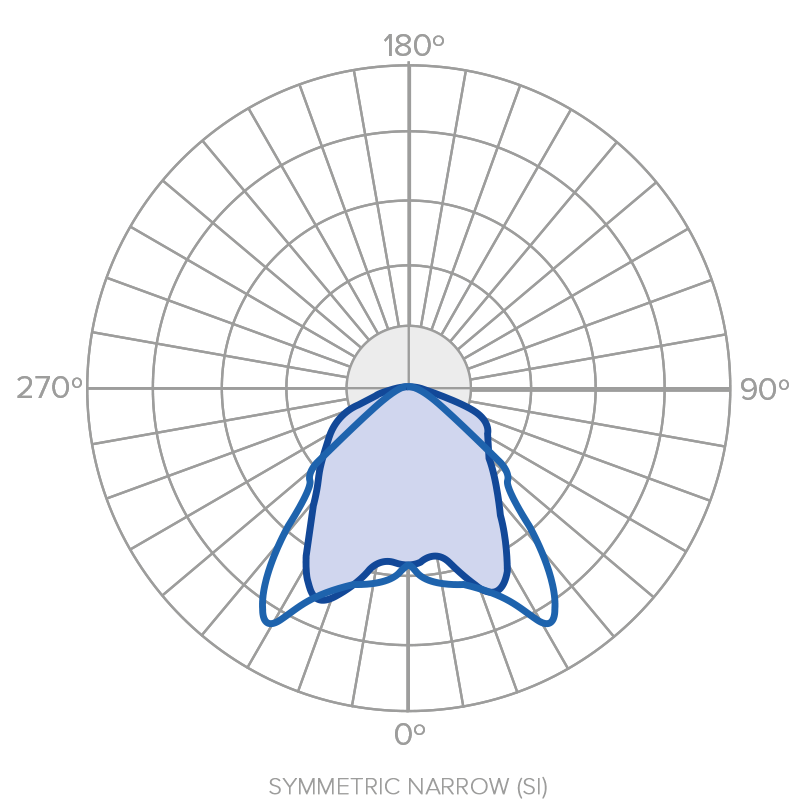

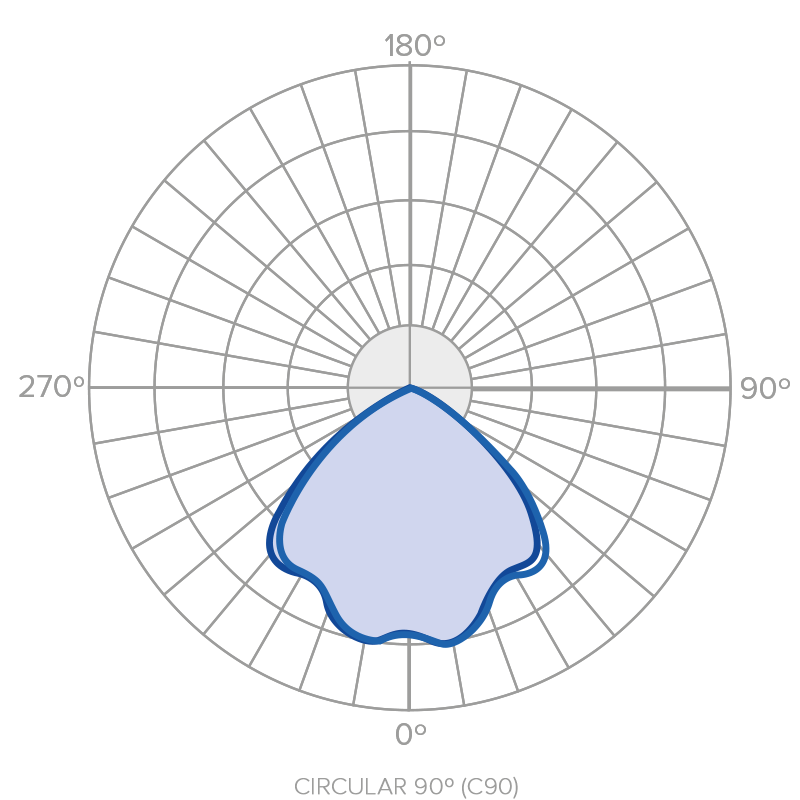

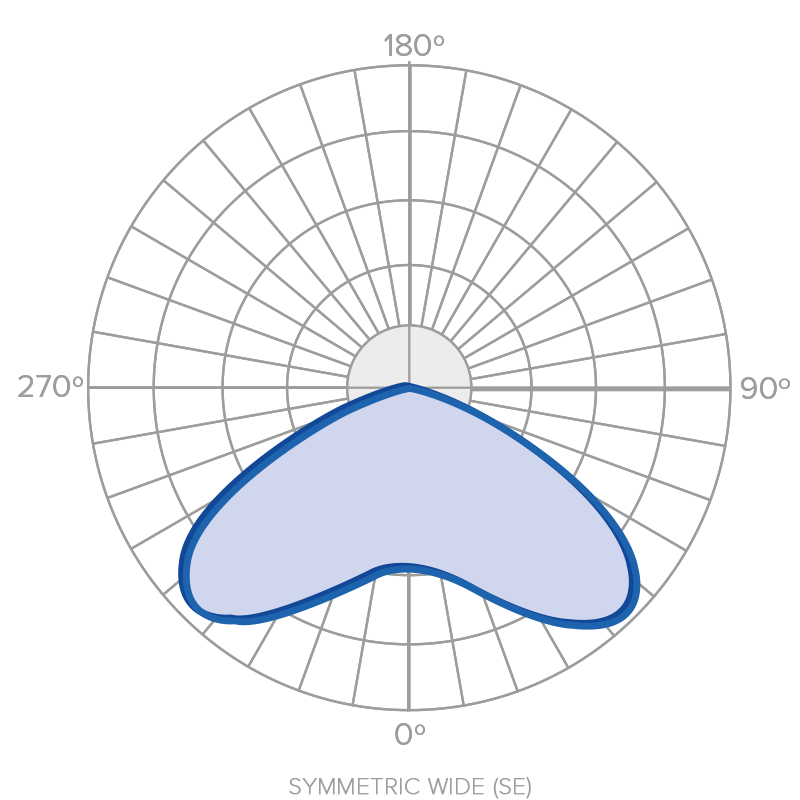

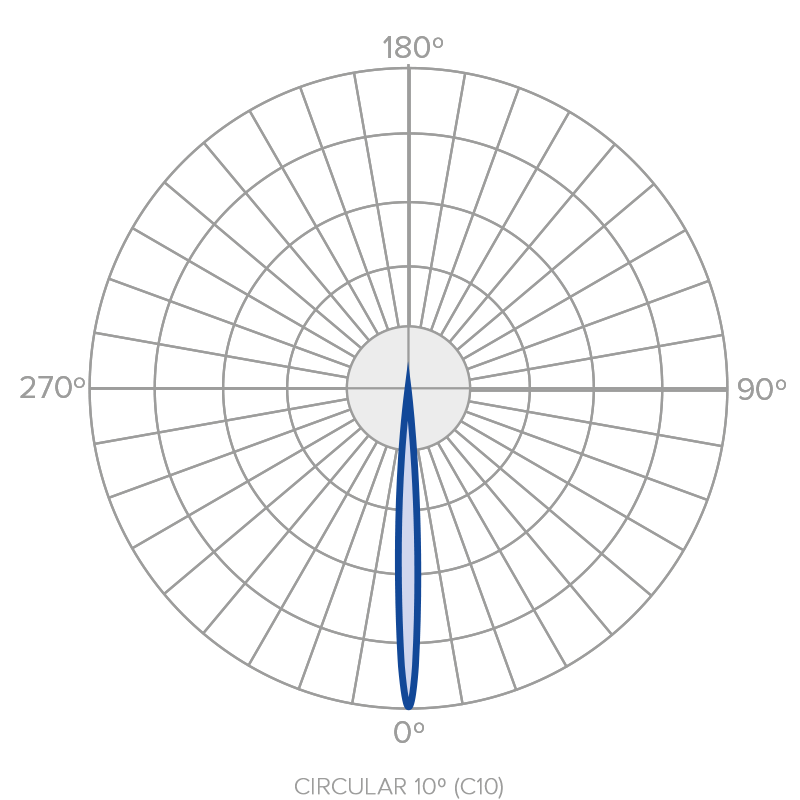

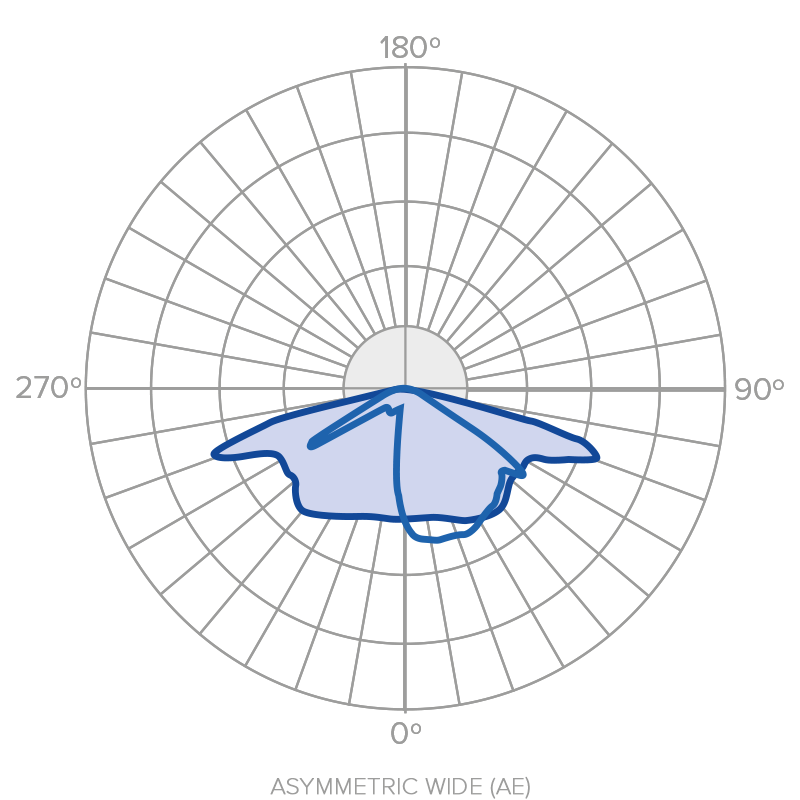

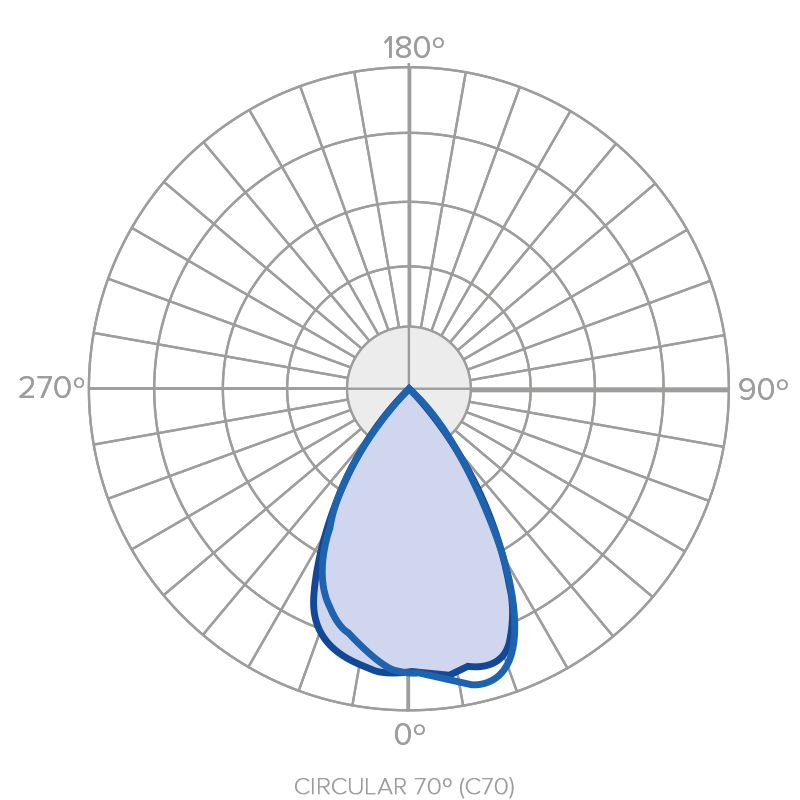

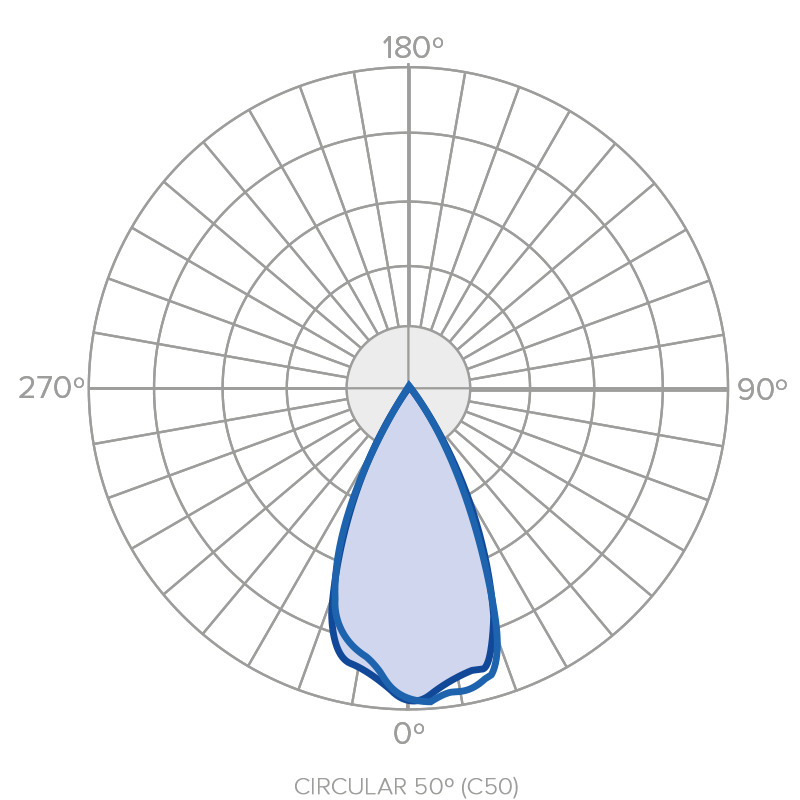

NOVATILUX module in 2 formats (16 or 32LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
Light source
LED: LED: 30-140 W
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. Brown colour. Colsult for other finising.
Mounting Height
3 - 14 m.
Attachment
Suspended installation.
Adjustable
Non adjustable luminaire.
High pressure die-cast aluminum. 4 mm tempered glass. Optional with flat or lenticular glass.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 2 formats (16 or 32LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
Flow reduction options:
- - Double level with line driver or programmable timer.
- - Multi-level with re-programmable timer.
- - Remote management.
Light source
LED: LED: 30-140 W
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. Brown colour. Colsult for other finising.
Mounting Height
3 - 14 m.
Attachment
Suspended installation.
Adjustable
Non adjustable luminaire.
TECHNICAL DATA
Dimensions
