Ref. ALAL

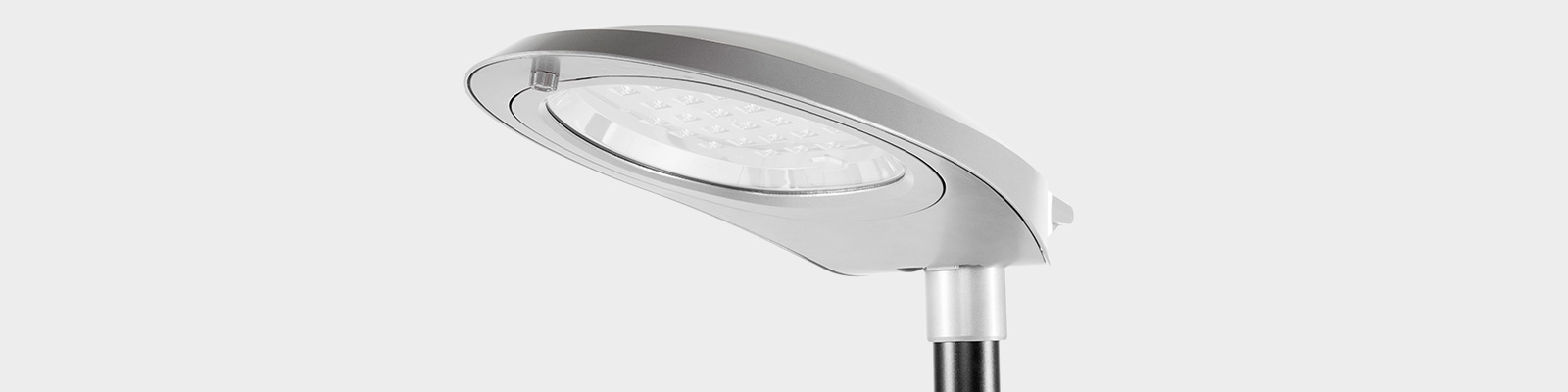

Agil LED Luminaire

Stylized LED luminaire

Add

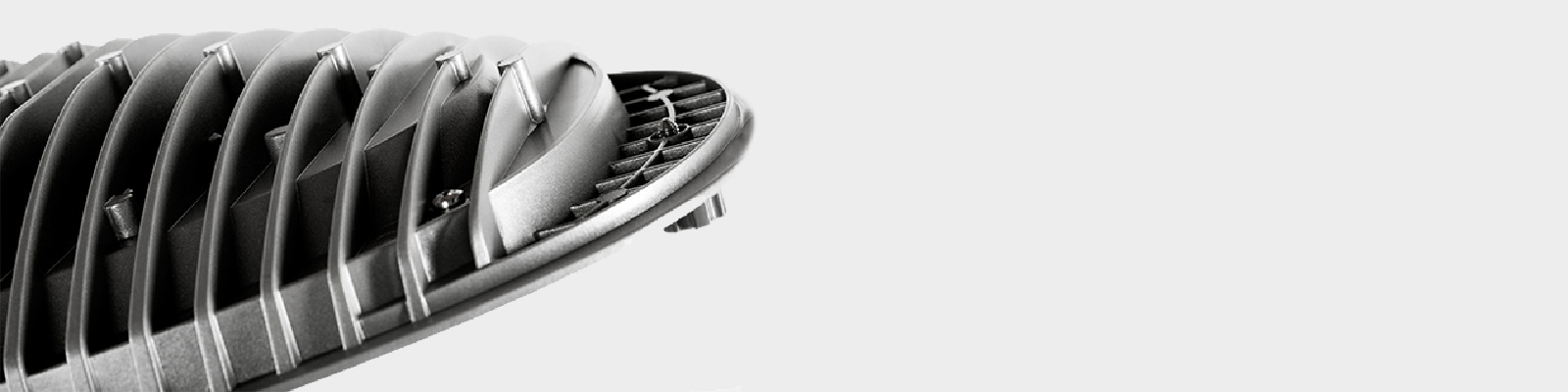

Body

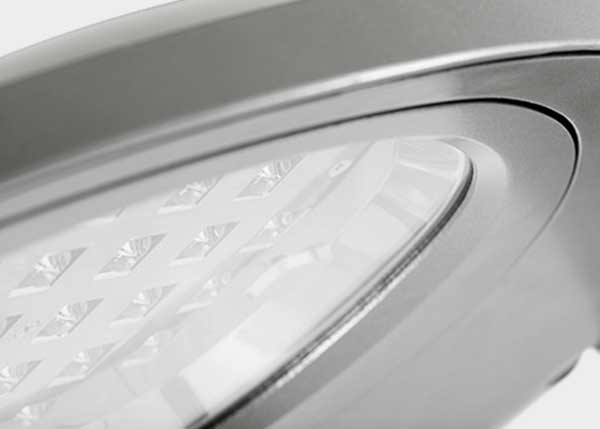

High pressure die-cast aluminum. 4-mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 2 formats (16 or 32 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on chrome steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options: -Double level with line driver or programmable timer. -Multi-level with re-programmable timer. -Remote management.

Light source
LED: 30-100 W.

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.

Mounting Height
4 - 10 m.

Attachment
Side or top: Ø60 mm.

Adjustable
Adjustable luminaire with tilt range from 0º to 15º from center point.

See more LED Luminaires

Download Light Catalogue

AGIL LED luminaire stands out for its high light output, low contamination and minimum maintenance.

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

Dimensions

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

Downloads

  • Technical File Agil LED
    669.4 KB
  • Assembly instructions ALAL
    993.87 KB
  • DIALUX files
    499.34 KB
  • EMC certifications
    24.62 KB
  • LVD certifications
    535.79 KB
  • CE certifications
    267.32 KB

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate
  • Certificate ENEC
    Certificate ENEC

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II

Locations

  • Highways and roads
    Highways and roads
  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • RAL 9007
    RAL 9007

Details and View

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

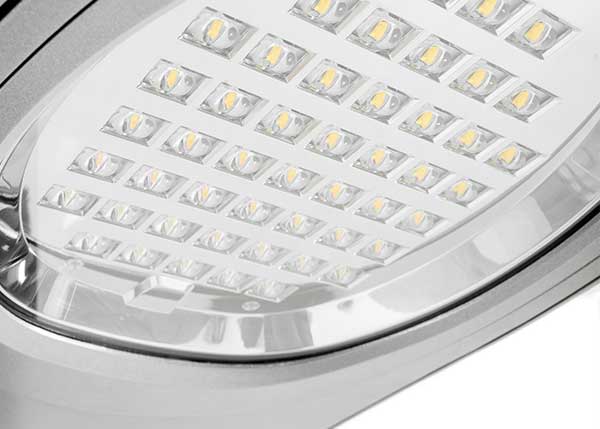

    Agil LED Luminaire

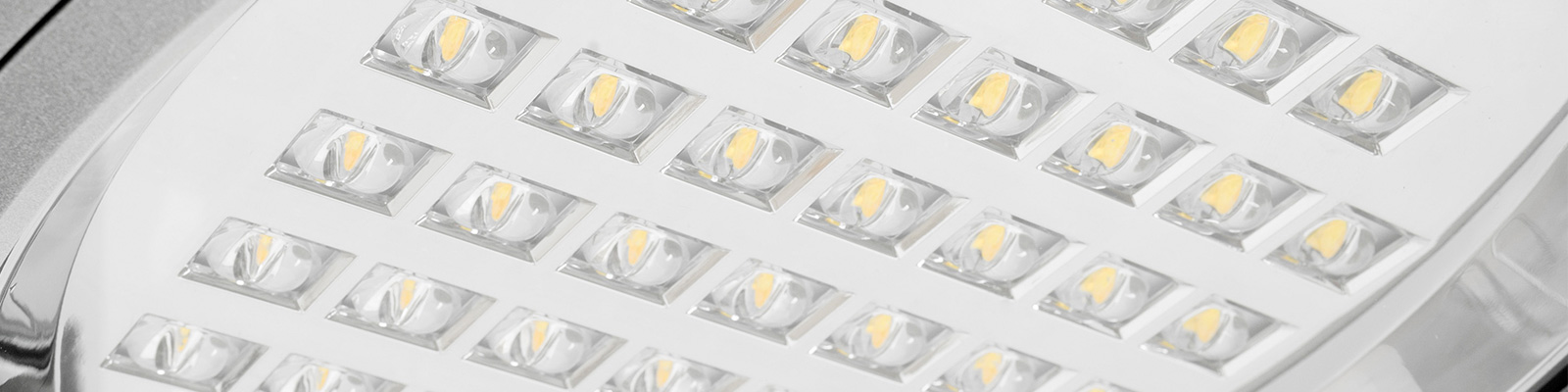

    NOVATILUX module in 2 formats (16 or 32 LEDs).

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

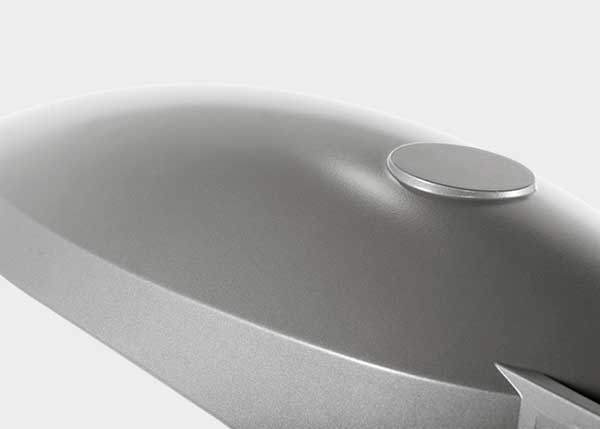

    Agil LED Luminaire

    Polyester powder paint coating.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
    Agil LED Luminaire

    LED: 30-100 W.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

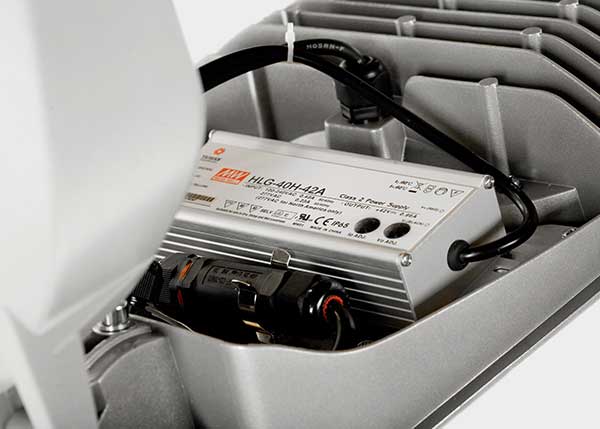

    Agil LED Luminaire

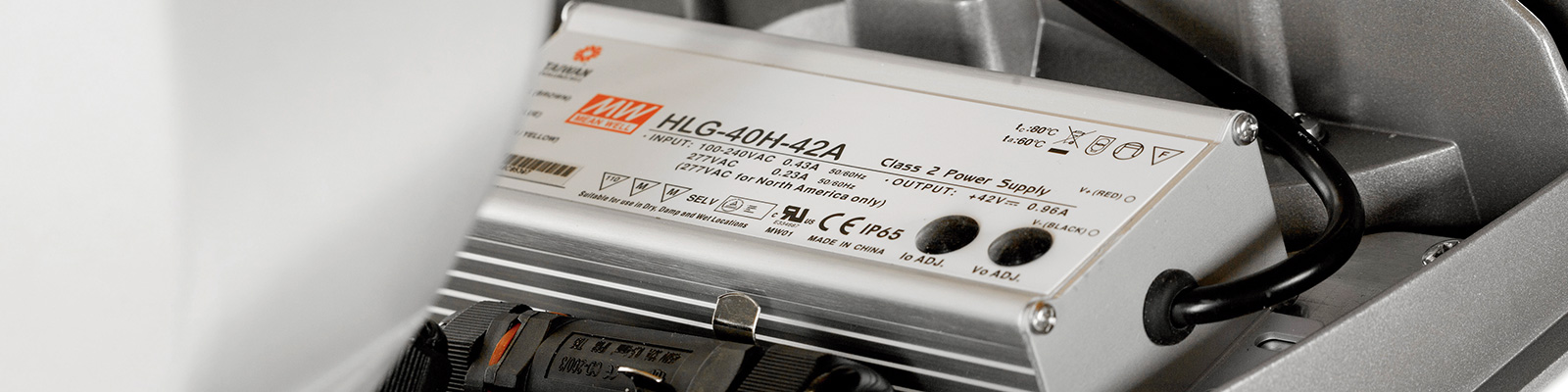

    Constant current adjustable driver.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
    Agil LED Luminaire

    Consult for color temperatures and light distributions.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
    Agil LED Luminaire
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
    Agil LED Luminaire

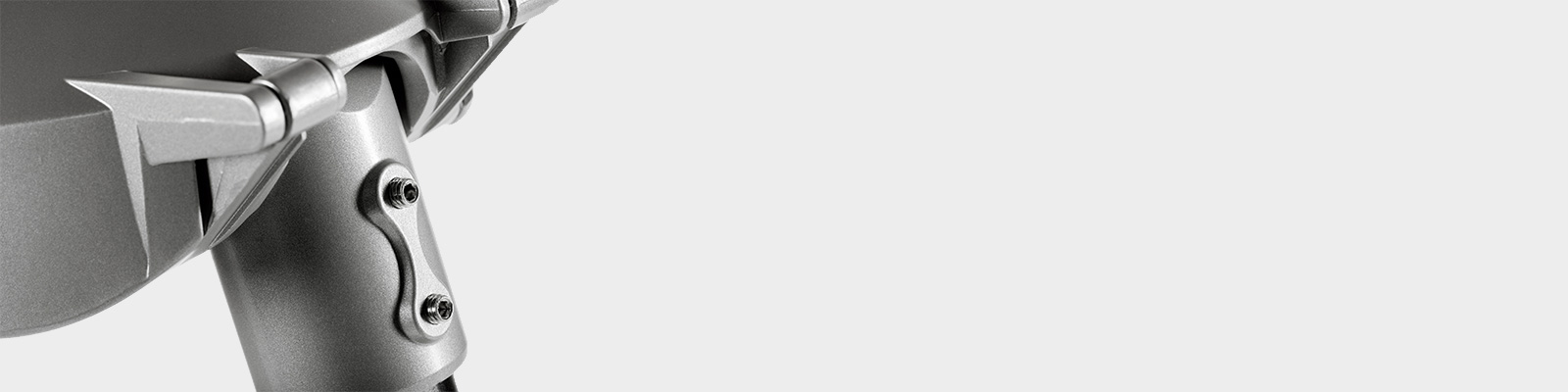

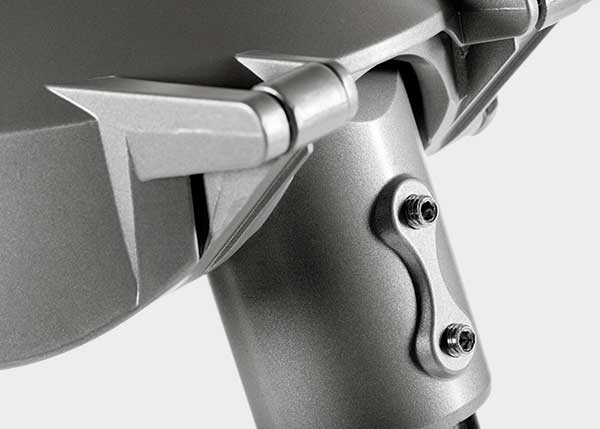

    Adjustable luminaire with tilt range from 0º to 15º from center point.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

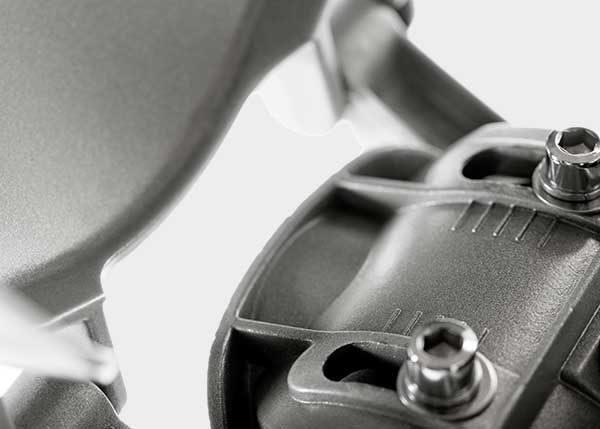

    Agil LED Luminaire

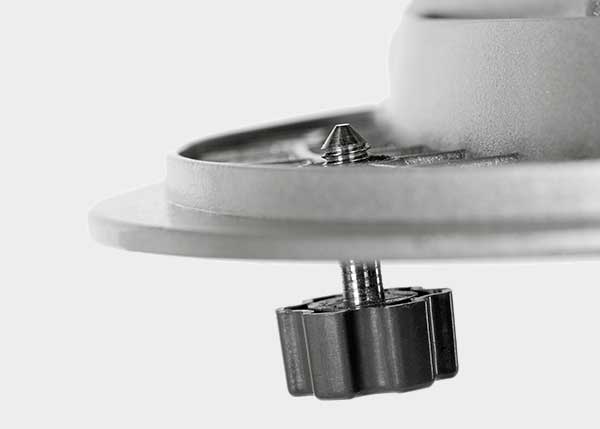

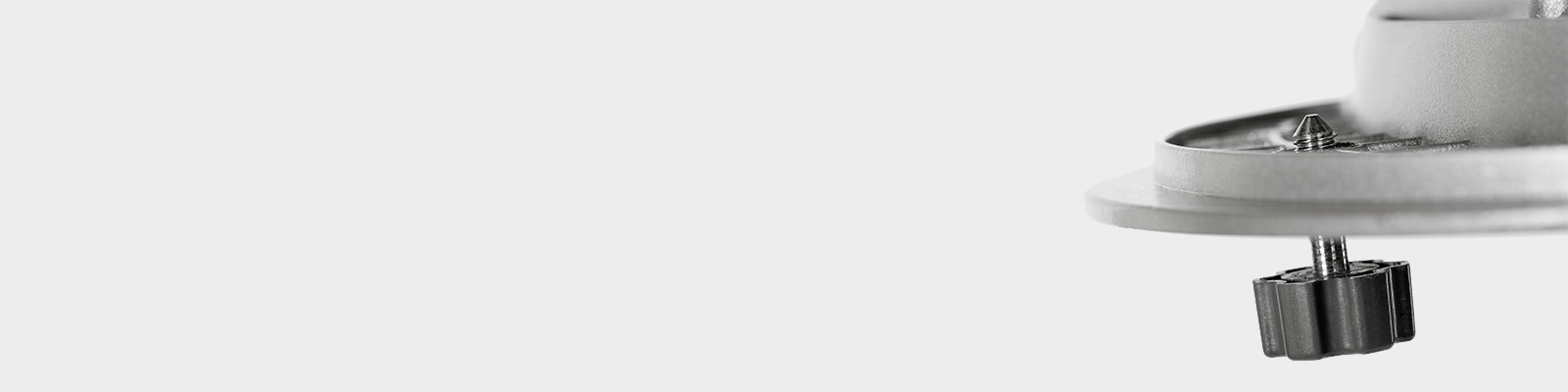

    Stainless steel bolts.

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

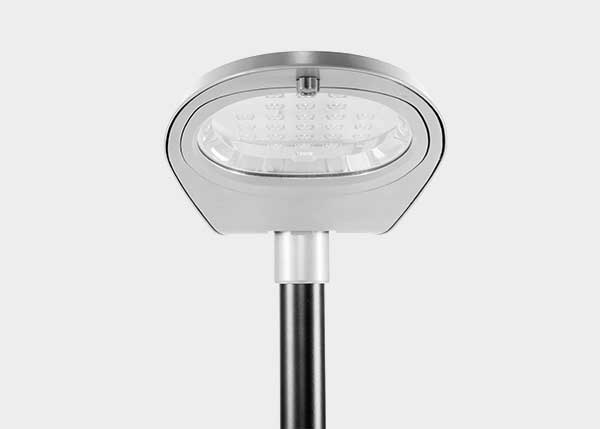

    Agil LED Luminaire

    Stylized LED luminaire.

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALAL Agil LED Luminaire , <strong>Stylized LED luminaire </strong>

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
