Ref. ALML

Milan M LED Luminaire

Body
High pressure die-cast aluminum. 4 mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 1 format (32LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:
    - Double level with line driver or programmable timer.
    - Multi-level with re-programmable timer.
    - Remote management.


Light source
LED: 60 - 80 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.

Mounting Height
5 - 12 m.

Attachment
Side or top: Ø60 mm.

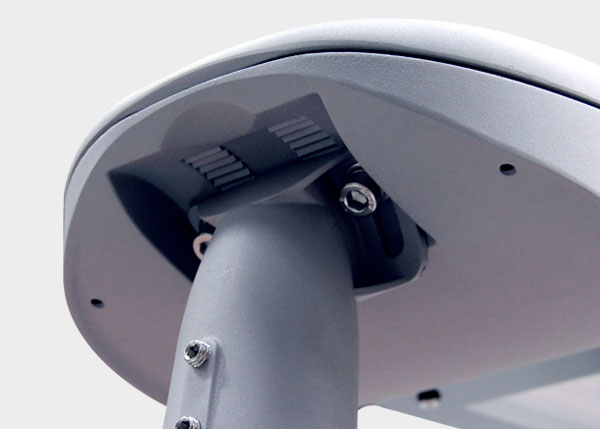

Adjustable
Adjustable luminaire with tilt range from -15º to 15º from center point.

See more LED Luminaires

Download Light Catalogue

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,

Colors

  • RAL 9022
    RAL 9022

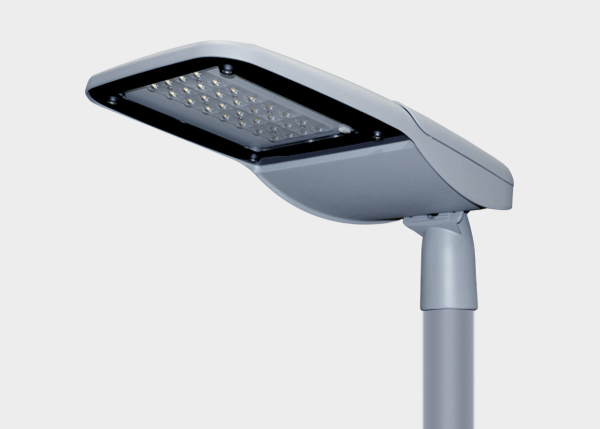

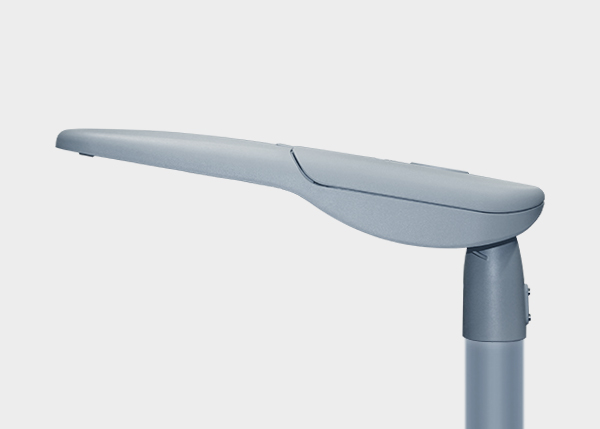

Details and View

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,
  • Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALML Milan M LED Luminaire   ,

Choose the version for
