Ref. ACSD

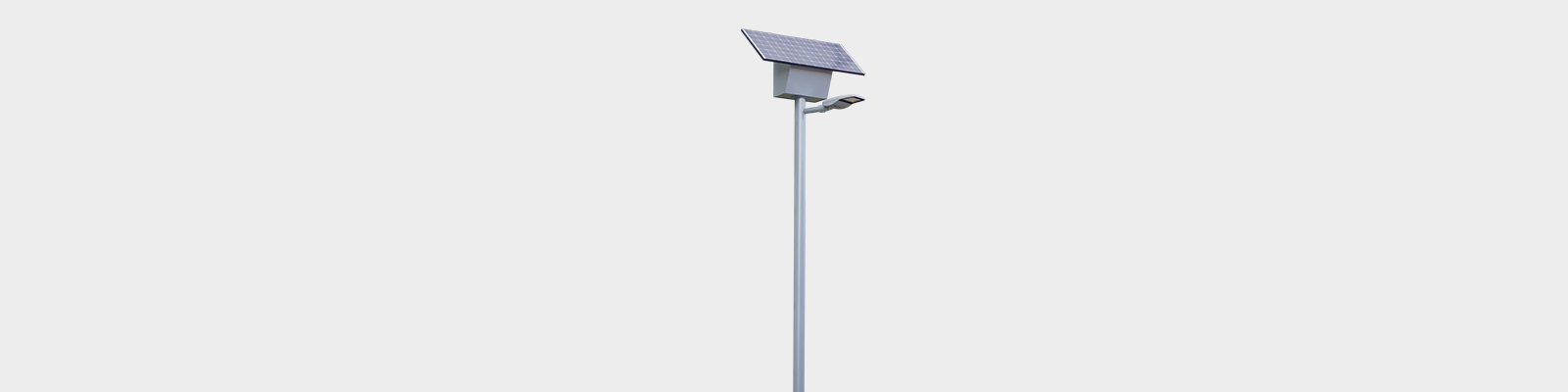

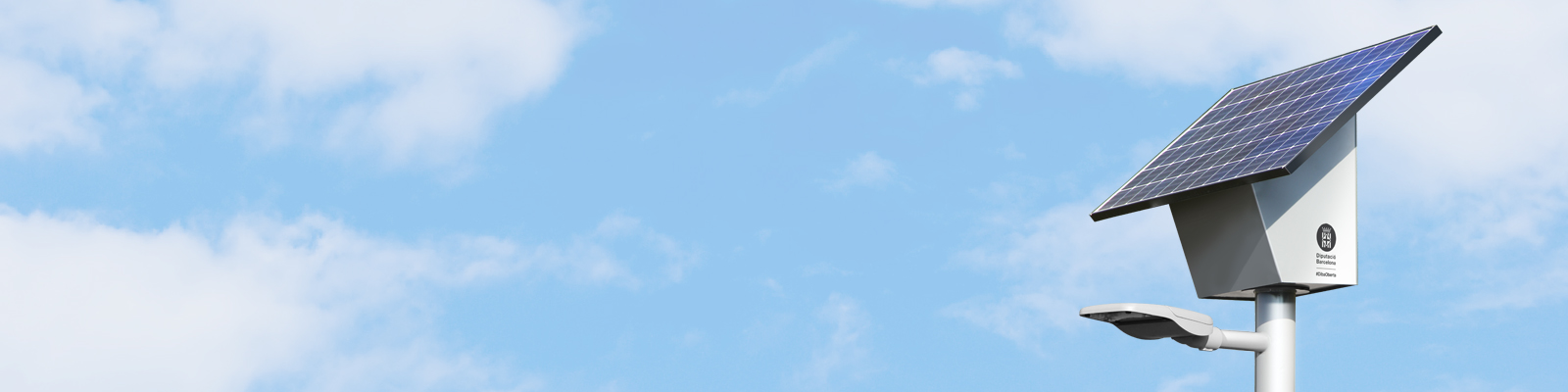

Solar Diba Light point

Body
Ø150 mm column, made with a single piece of laminated S-235-JR steel, galvanized.
Ø60 mm bracket with 400 mm length.
Battery box of galvanized and painted steel.
Luminaire made of high pressure die-cast aluminium.
4 mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
LED module in 1 format (16LED). Consult for color temperatures an light distributions.

Electronic equipment
Driver/Regulator with intelligent load system (MPPT) incorporated inside the box.
Pre-wired on galvanized steel plate.
Photovoltaic panel 245Wp 12V.
Solar Gel battery 2x100Ah.
Solar battery autonomy >3h or 3 days.

Regulation
Double level:
3h at 20W, 10W the rest of the cycle.

Flow reduction
Programable reduction with 6 steps.

Light source
LED: 30 W

Finishing
Luminaire:
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.
Column, bracket and box:
Galvanized. Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.

Mounting Height
6 m.

Attachment
Luminaire: Side Ø60 mm.
Column: 4 anchor bolts of M22x700mm.

Adjustable
Adjustable luminaire with tilt range from -10º to 10º.

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Points of light  , ACSD Solar Diba Light point ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Points of light  , ACSD Solar Diba Light point ,

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • Solar Energy
    Solar Energy
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II

Locations

  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

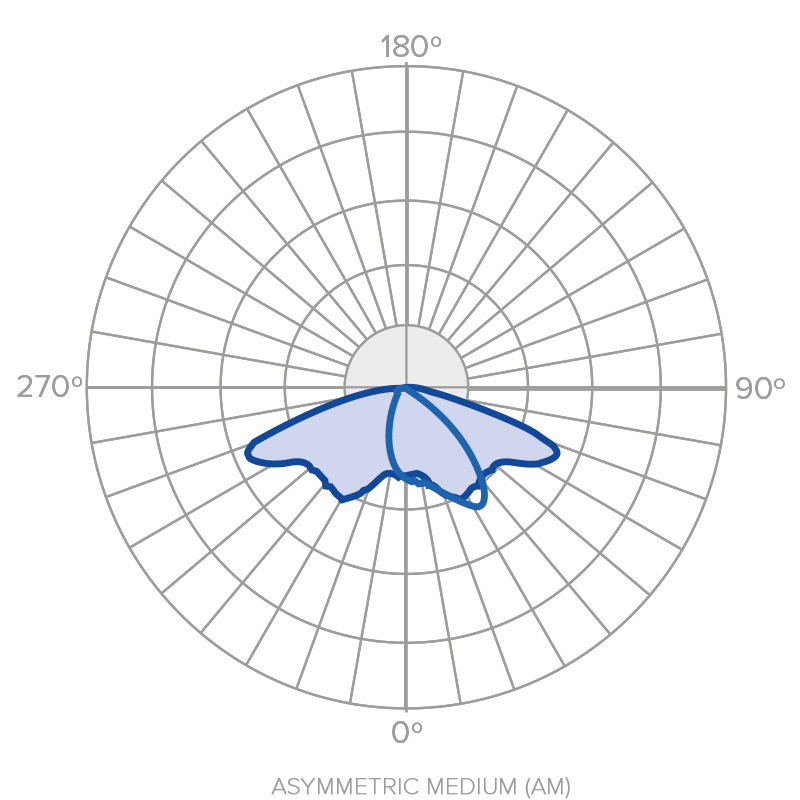

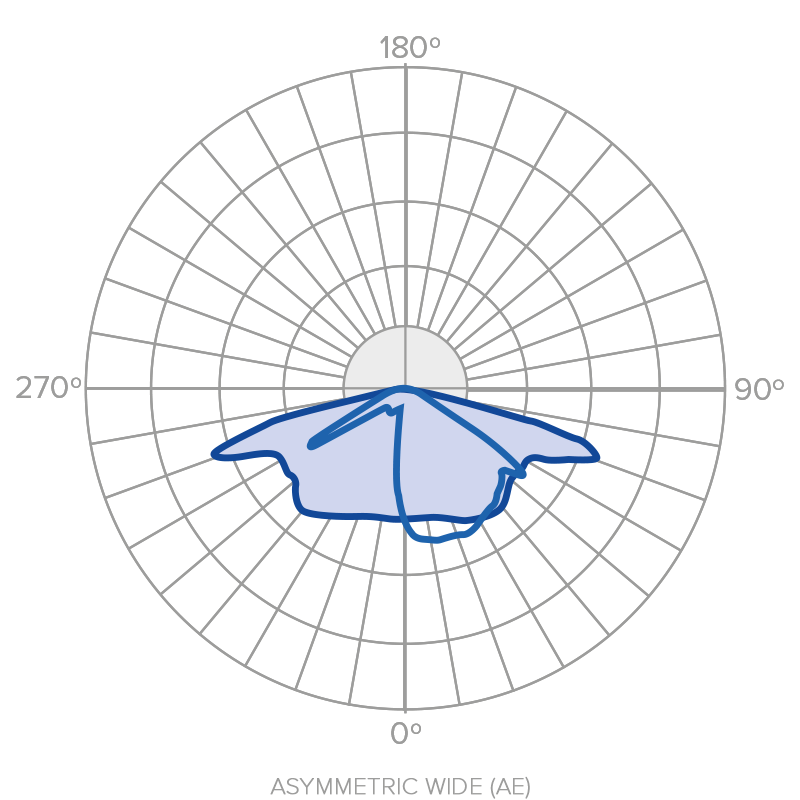

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACSD Solar Diba Light point ,
  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACSD Solar Diba Light point ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
