Ref. ACTM

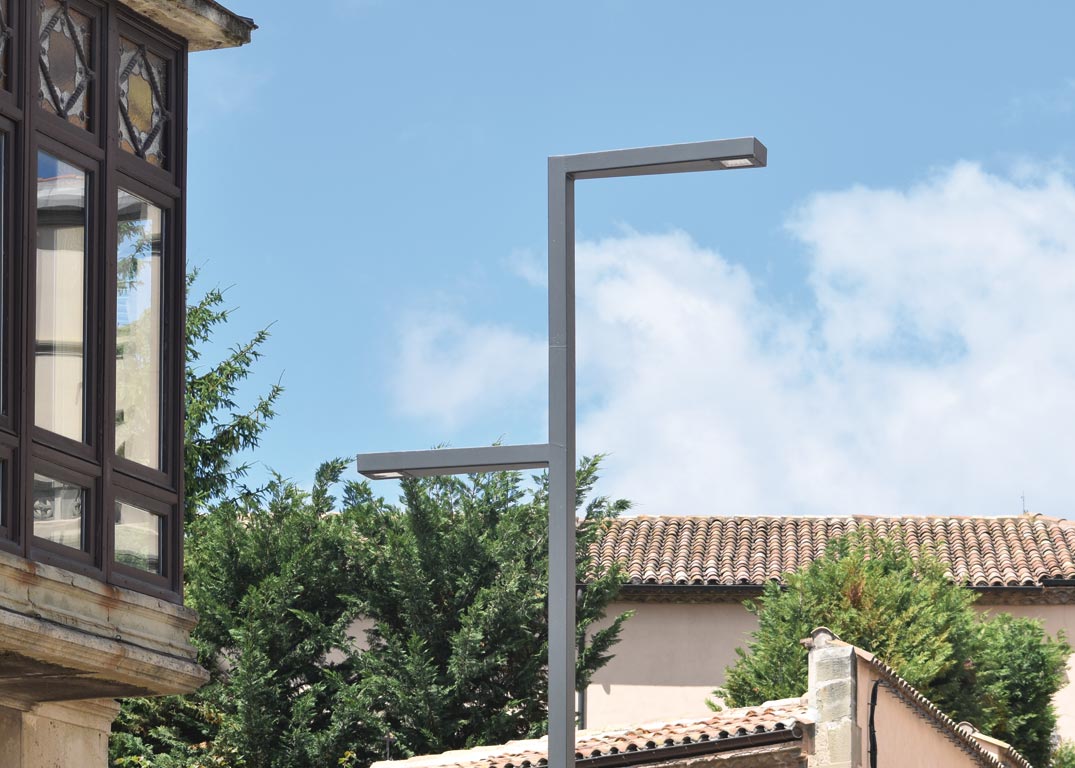

Tomsk Light point

Body
Made of two pieces of S-235-JR steel, rectangular section 100x200mm.

Screws
Stainless steel bolts.

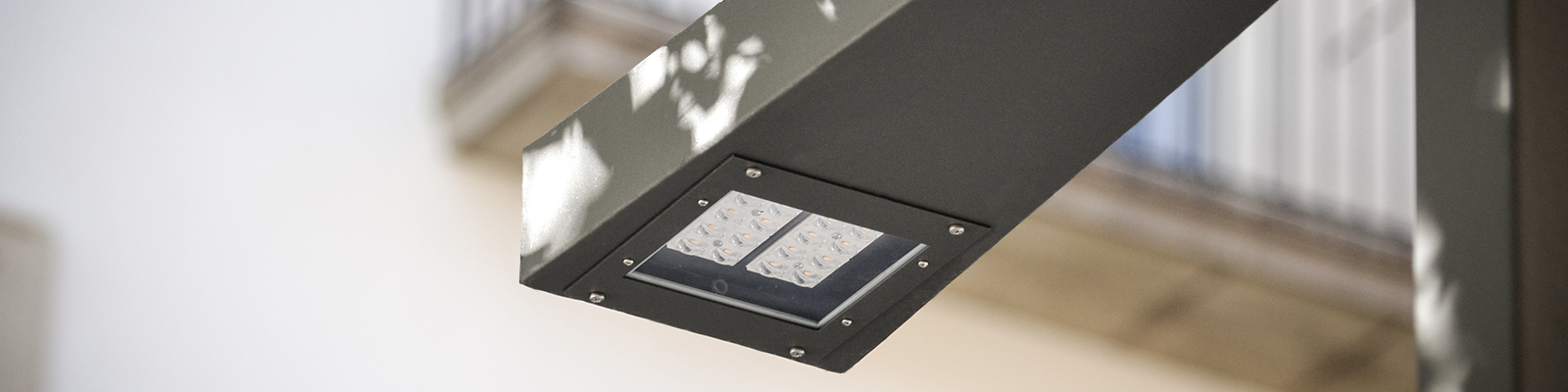

Optic bloc
NOVATILUX module in 2 formats (16 or 32LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:
    -Double level with management line or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.
Finishing
Galvanized. Polyester powder paint coating, electrostatically sprayed and sublimated in oven. Corrosion resistant. Sable grey 900 colour. Consult for other finishes.

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,

Downloads

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • IP65
    IP65
  • Ground
    Ground
  • Class II
    Class II
  • IP67
    IP67

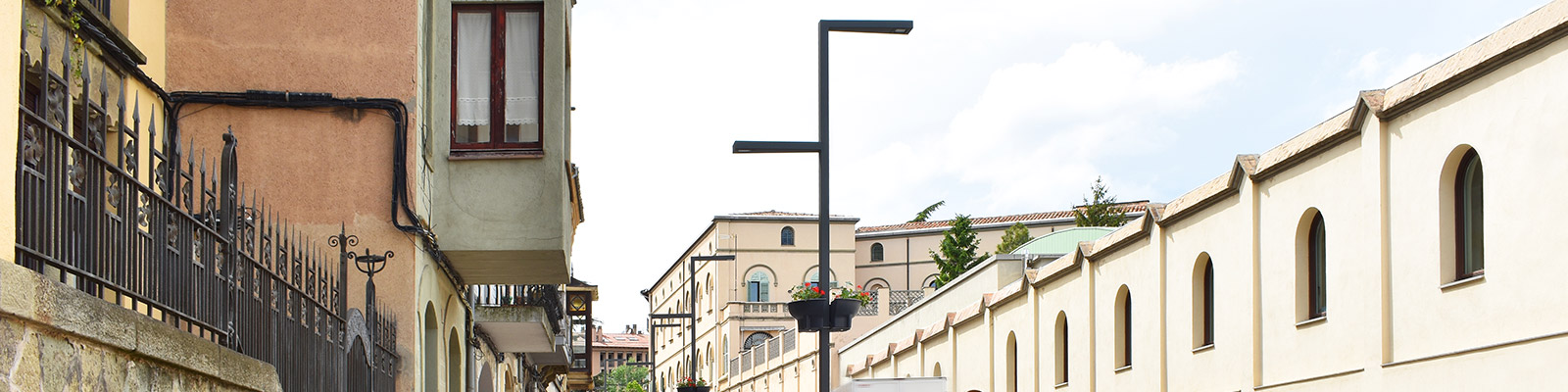

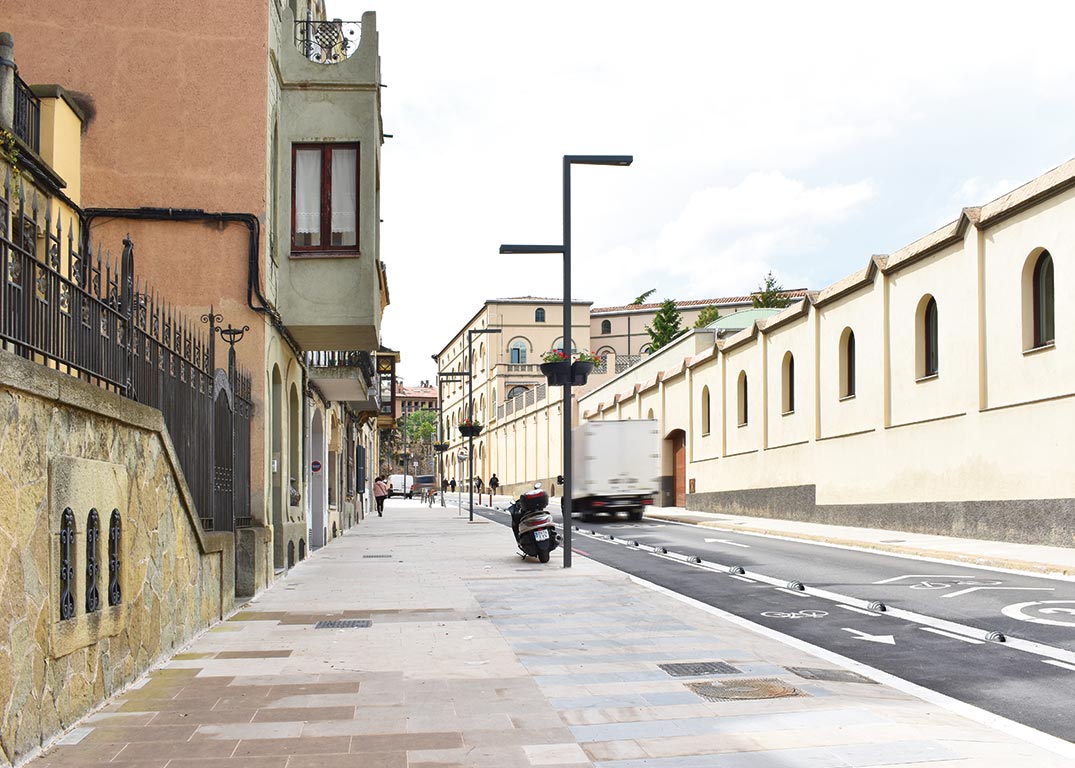

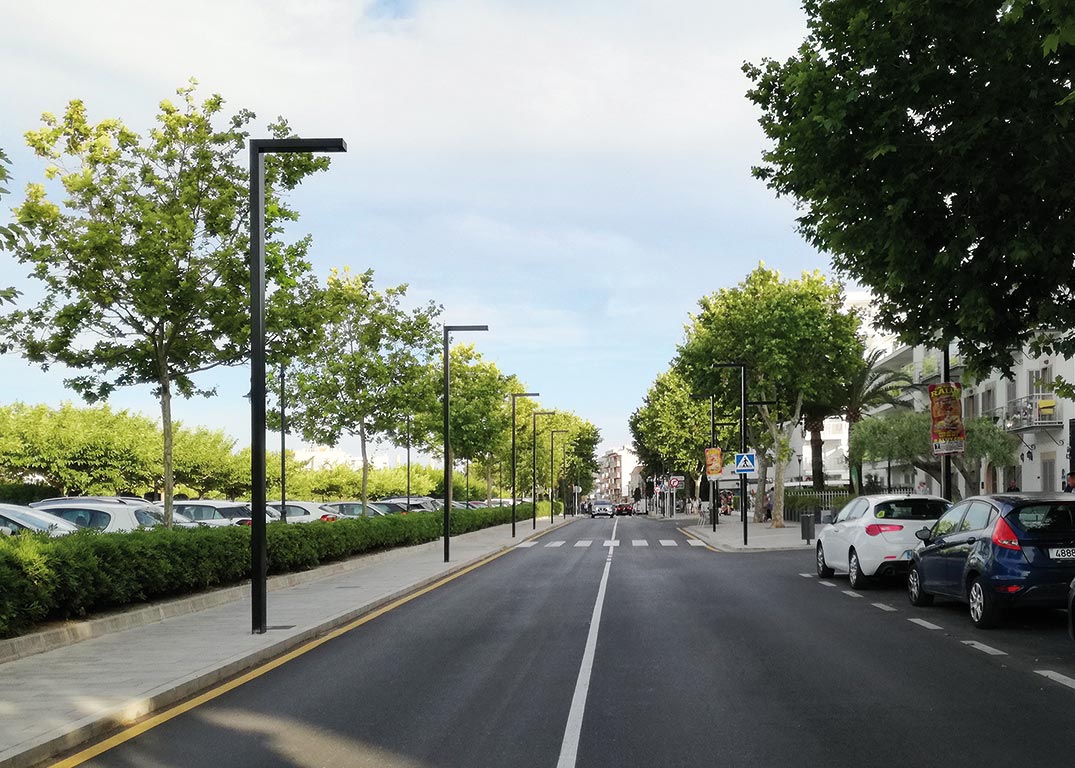

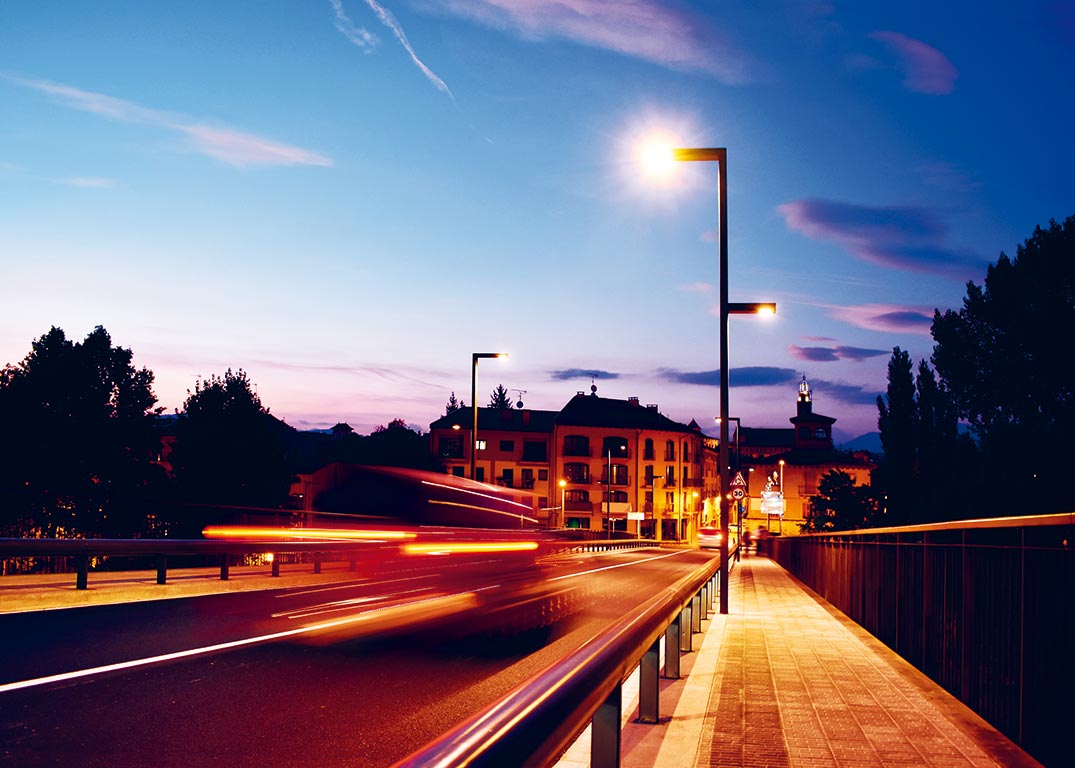

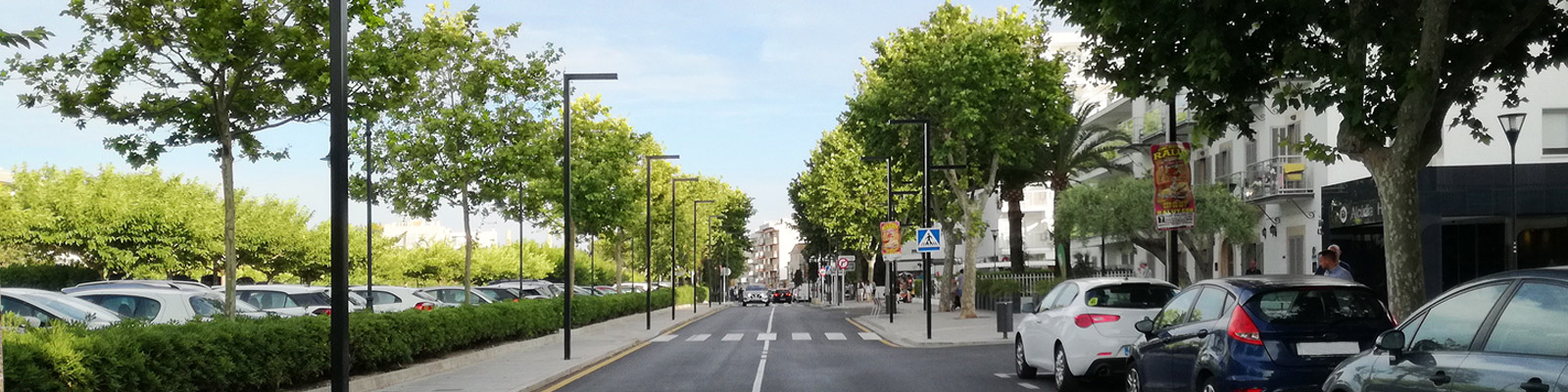

Locations

  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • G color
    G color

Details and View

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,
  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,
  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,
  • Public lighting with LED luminaires for outdoor lighting , Points of light  , ACTM Tomsk Light point ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
