Ref. ACT

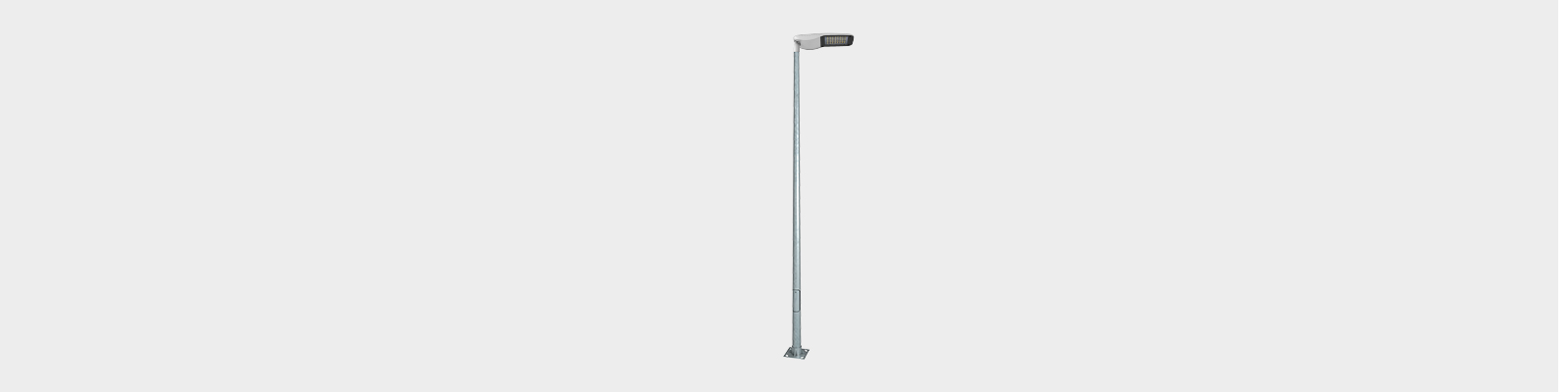

Troncocónica Pole
Description
The Troncocónica post is manufactured in one single piece. It is tapered to 60 mm in diameter at its top for anchoring luminaires. It is attached to the base plate by a reinforced panel and 4 brackets.
Material
Manufactured in one single piece of S-235-JR laminated steel and hot dip galvanized.
Finishes
Hot dip galvanized.
Place of installation
Post specially designed for installation on roads, streets and major urban elements such as avenues and boulevards.
Mounting
Height of 4 to 6 m:
Using 4 anchor bolts of M18x500 mm to 200x200 mm between centers.
Height of 7 to 8 m:
Using 4 anchor bolts of M18x500 to 300x300 mm between centers.
Height of 9 to 12 m:
Using 4 anchor bolts of M22x800 to 300x300 mm between centers,
Inspection door
To accommodate fuse box connections.
The Troncocónica post is manufactured in one single piece. It is tapered to 60 mm in diameter at its top for anchoring luminaires. It is attached to the base plate by a reinforced panel and 4 brackets.
Material
Manufactured in one single piece of S-235-JR laminated steel and hot dip galvanized.
Finishes
Hot dip galvanized.
Place of installation
Post specially designed for installation on roads, streets and major urban elements such as avenues and boulevards.
Mounting
Height of 4 to 6 m:
Using 4 anchor bolts of M18x500 mm to 200x200 mm between centers.
Height of 7 to 8 m:
Using 4 anchor bolts of M18x500 to 300x300 mm between centers.
Height of 9 to 12 m:
Using 4 anchor bolts of M22x800 to 300x300 mm between centers,
Inspection door
To accommodate fuse box connections.
TECHNICAL DATA
Dimensions
