Ref. ALDCL

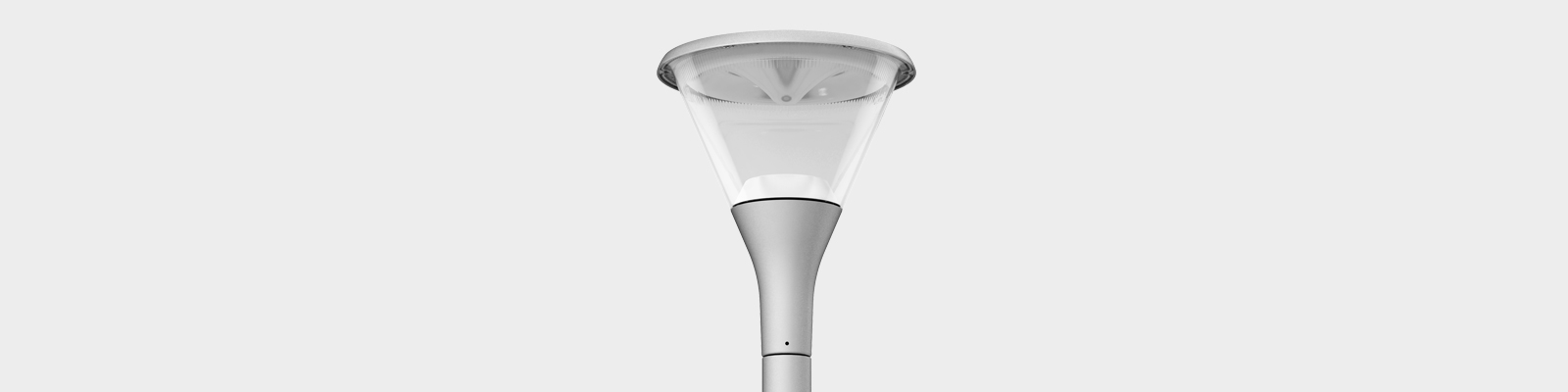

Dallas Copa Luminaire

Body
High pressure die-cast aluminum. Transparent PMMA diffuser.

Screws
Stainless steel bolts.

Optic bloc
1 COB LED module with anodized aluminum reflector. Consult for color temperatures.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class I or II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:

-Double level with line driver or programmable timer.

-Multi-level with re-programmable timer.

-Remote management.

Light source
LED: 40-60 W.

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 and RAL7035 colors.

Mounting Height
4 - 6 m.

Attachment
Top: Ø60 mm.

Adjustable
Non-adjustable luminaire.
