Ref. ALIL

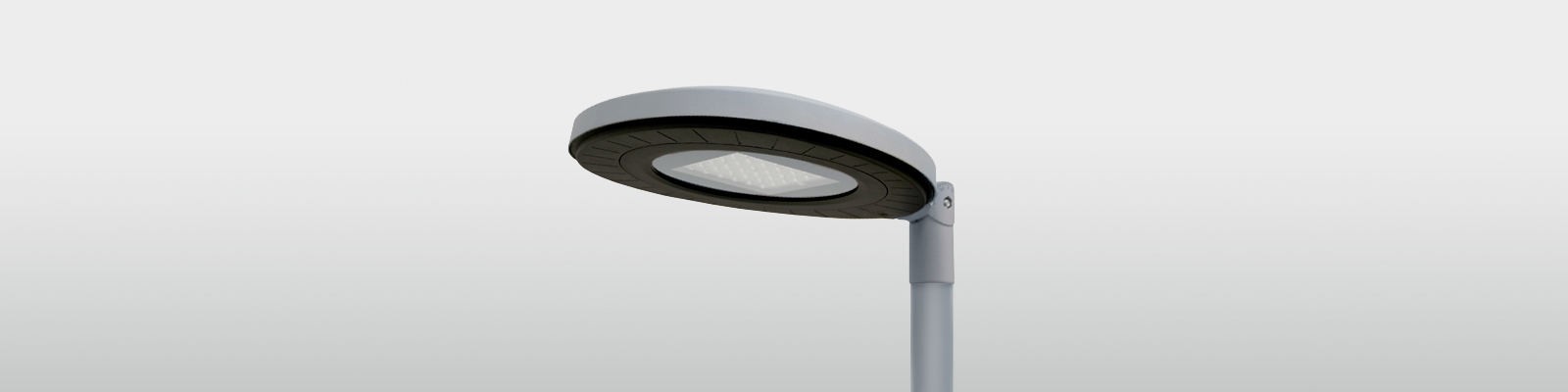

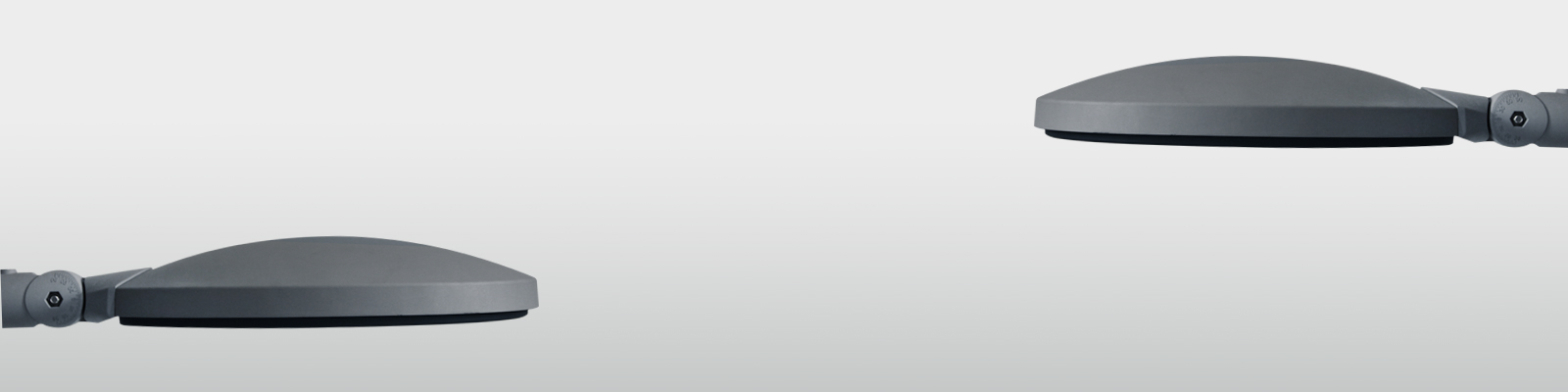

Innova LED Luminaire

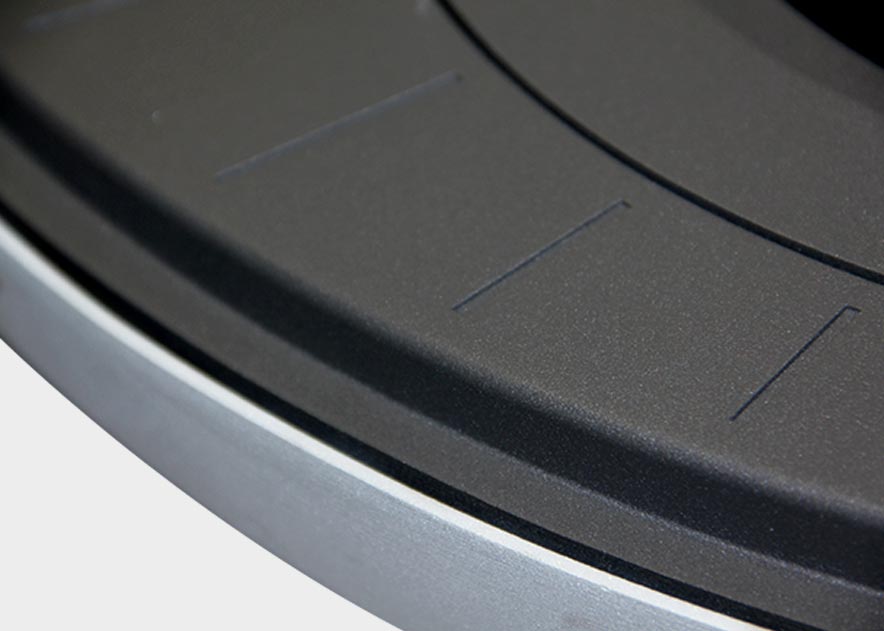

Body
High pressure die-cast aluminum. 5-mm tempered glass.

Screws
Stainless steel bolts.

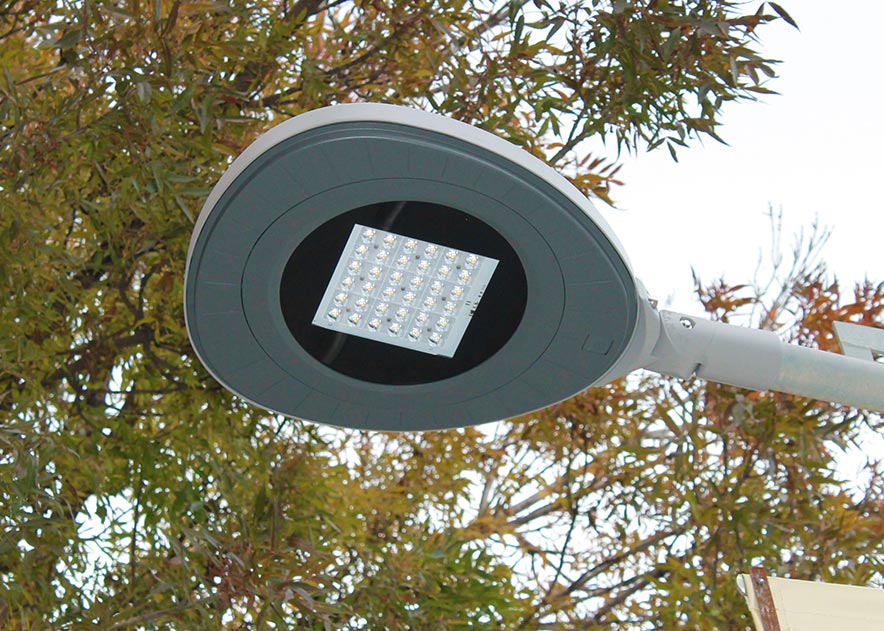

Optic bloc
NOVATILUX module in 2 formats (24 or 36 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable

Flow reduction
Flow reduction options:
    -Double level with line driver or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.


Light source
LED: 30-80 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 and RAL 7043 color.

Mounting Height
4 - 10 m.

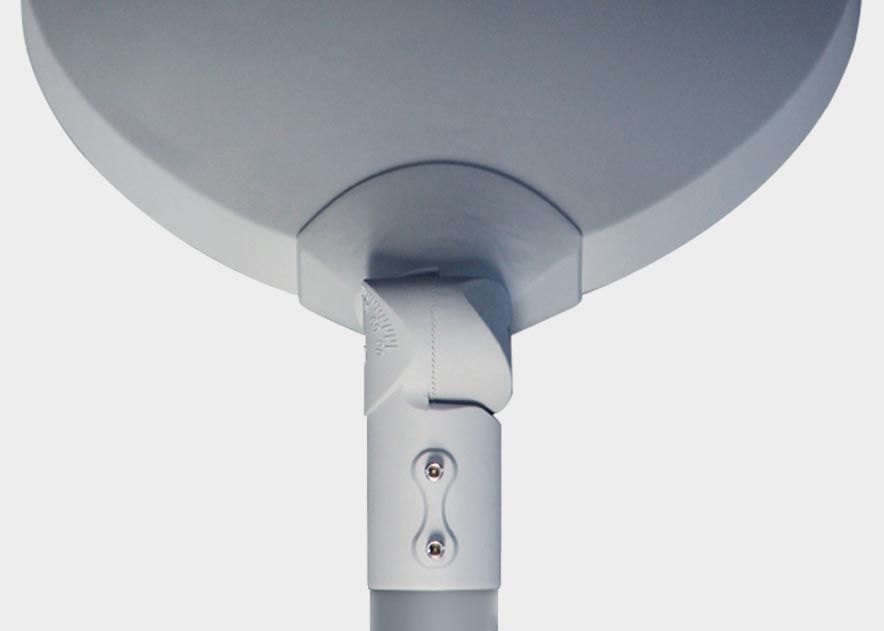

Attachment
Side or top: Ø60 mm.

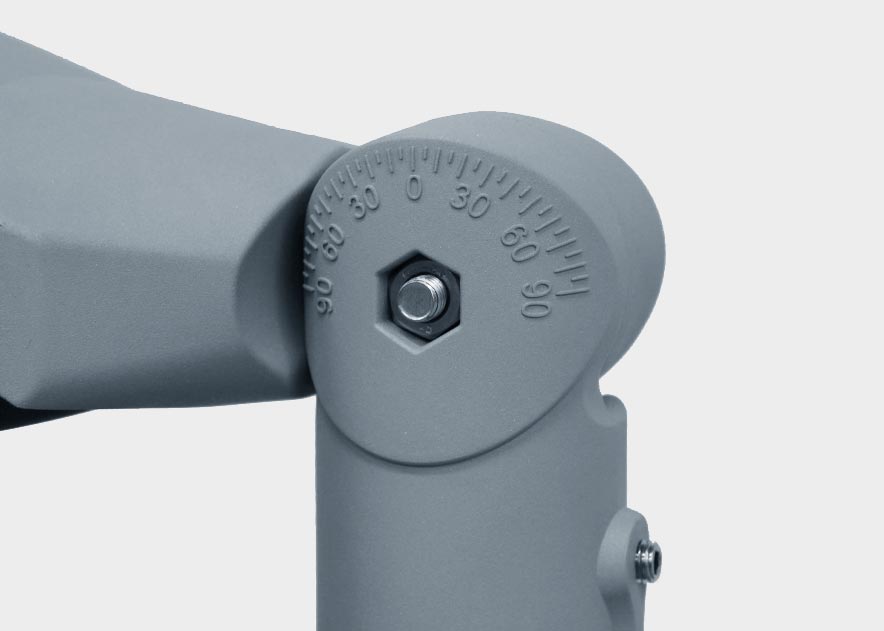

Adjustable
Adjustable luminaire with tilt range from 0º to 15º from center point.

See more LED Luminaires

Download Light Catalogue

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,

Downloads

  • Technical File Innova
    736.17 KB
  • Assembly instructions Innova LED
    1.54 MB
  • DIALUX files
    621.91 KB
  • BIM files
    557.85 KB
  • IAC certification - Innova
    634.55 KB
  • EMC certifications
    38.36 KB
  • LVD certifications
    526.09 KB
  • CE certifications
    267.32 KB

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate
  • Certificate ENEC
    Certificate ENEC

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS

Regulations

  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II
  • Ik09
    Ik09

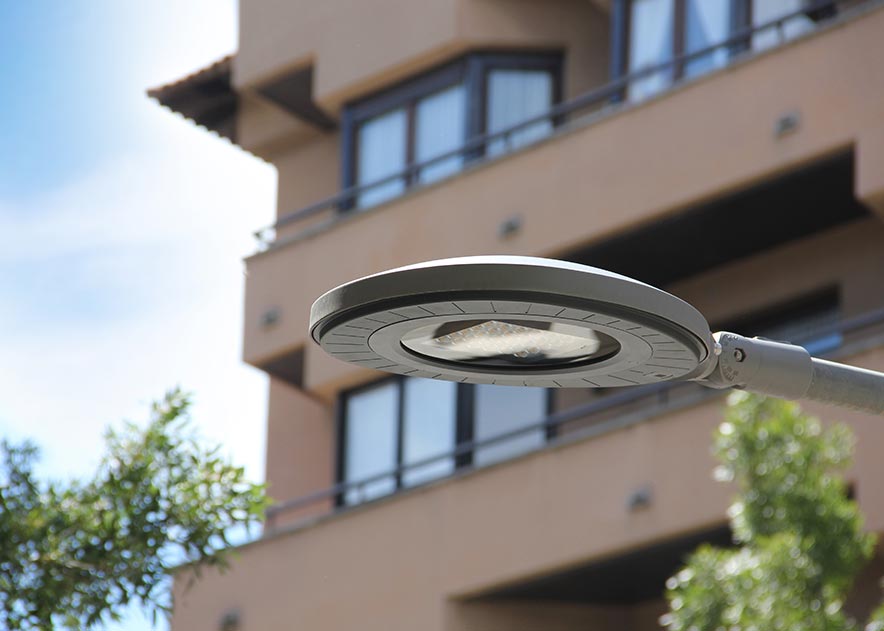

Locations

  • Highways and roads
    Highways and roads
  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • RAL 9022
    RAL 9022
  • RAL 7043
    RAL 7043

Details and View

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIL Innova LED Luminaire ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
