Ref. ALIBL

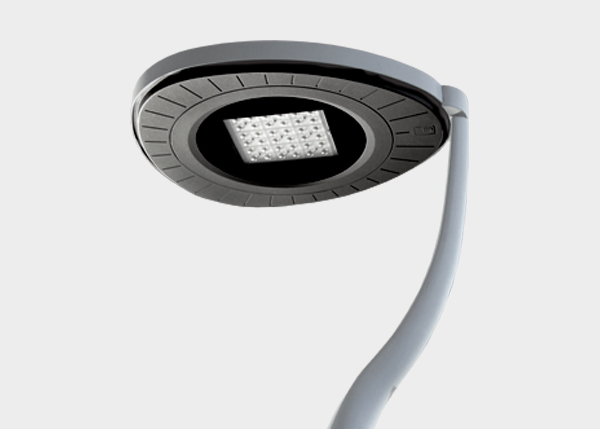

Innova B LED Luminaire

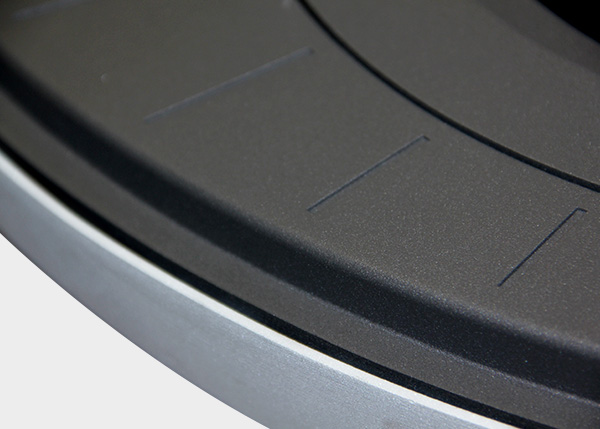

Body
High pressure die-cast aluminum. 5-mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 1 format (24 LEDs). Consult for color temperatures and light distributions.

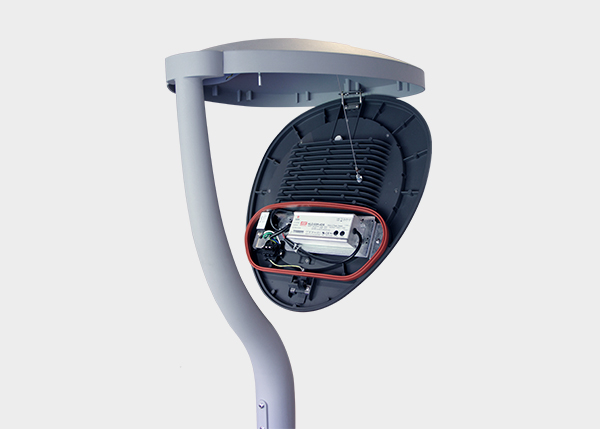

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on chrome steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable

Flow reduction
Flow reduction options:
    -Double level with line driver or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.

Light source
LED: 30-60 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.

Mounting Height
3,5 - 6 m.

Attachment
Top: Ø60 mm.

Adjustable
Non-adjustable luminaire.

See more LED Luminaires

Download Light Catalogue

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,

Downloads

  • Technical File Innova B
    750.67 KB
  • Assembly instructions Innova B LED
    1.47 MB
  • DIALUX files
    486.23 KB
  • BIM files
    775.29 KB
  • IAC certification - Innova
    634.55 KB
  • EMC certifications
    38.36 KB
  • LVD certifications
    526.09 KB
  • CE certifications
    267.32 KB

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate
  • Certificate ENEC
    Certificate ENEC

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS
  • CRI
    CRI

Regulations

  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II
  • Ik09
    Ik09

Locations

  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • RAL 9022
    RAL 9022

Details and View

  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALIBL Innova B LED Luminaire ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K
