Ref. ALSL

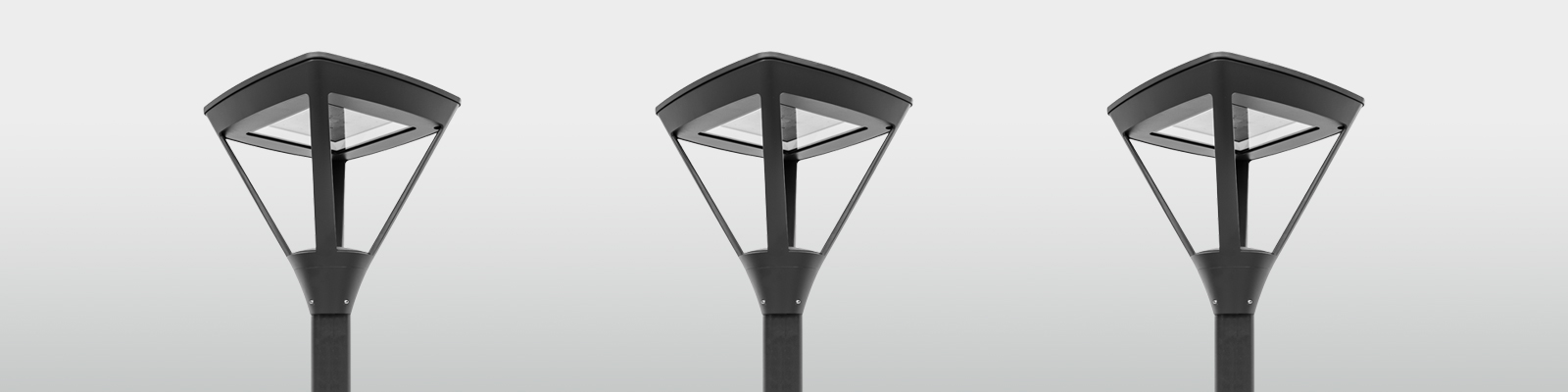

Siena LED Luminaire

Body
High pressure die-cast aluminum. 4-mm tempered glass.

Screws
Stainless steel bolts.

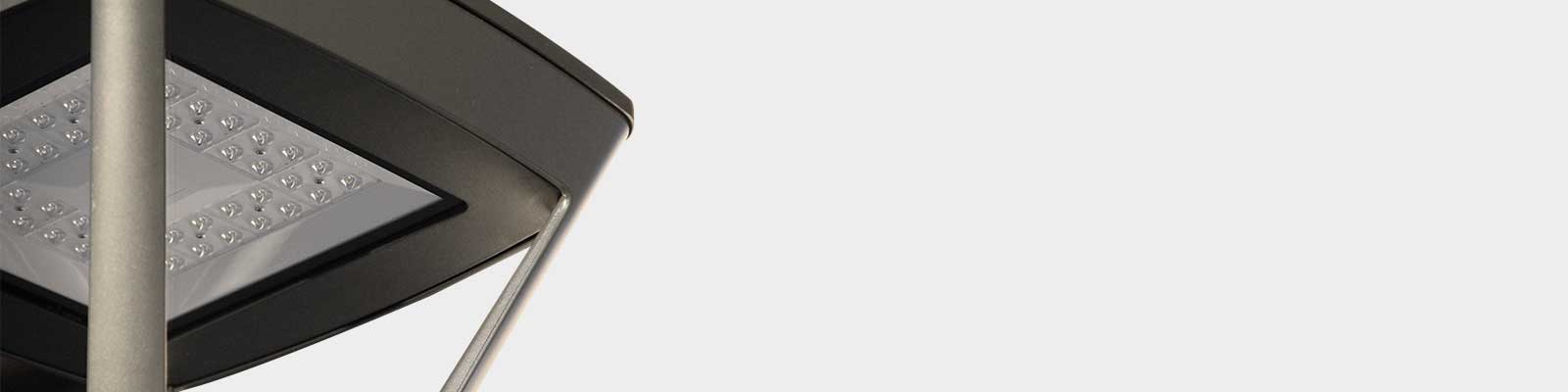

Optic bloc
NOVATILUX module in 2 formats (32 or 48 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable

Flow reduction
Flow reduction options:
    -Double level with line driver or programmable timer.
    -Multi-level with re-programmable timer.
    -Remote management.


Light source
LED: 30-80 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. Matt Black color.

Mounting Height
3,5 - 6 m.

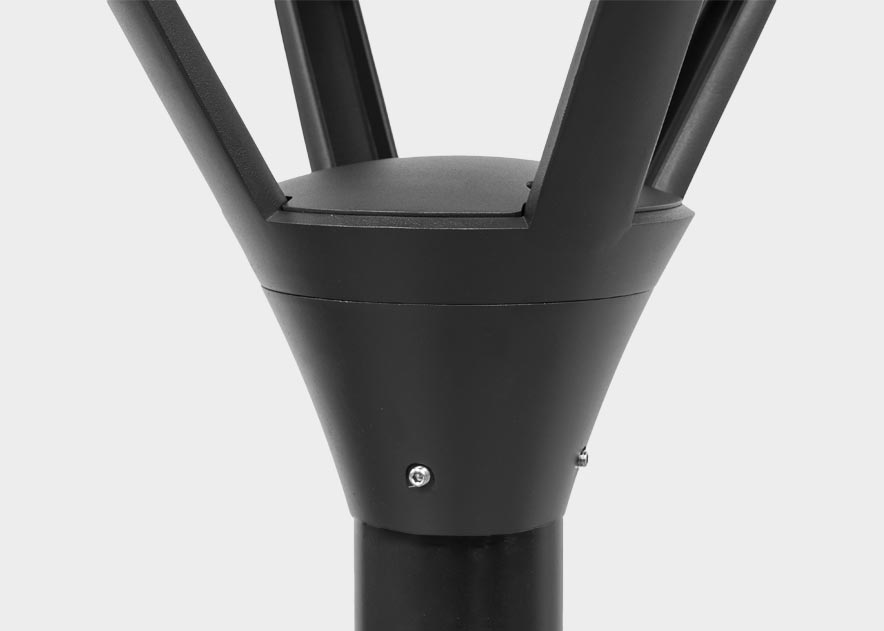

Attachment
Top: Ø60-76 mm.

Adjustable
Non-adjustable luminaire.

See more LED Luminaires

Download Light Catalogue

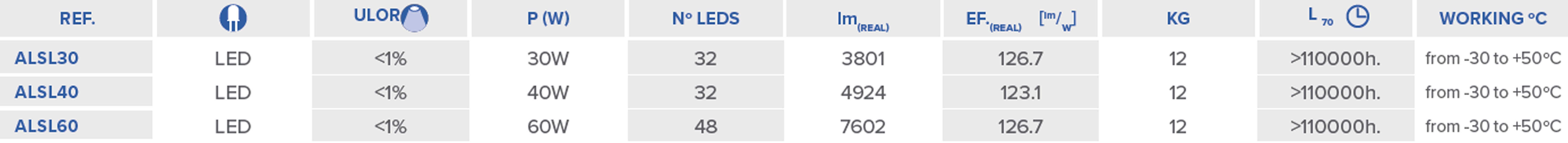

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,

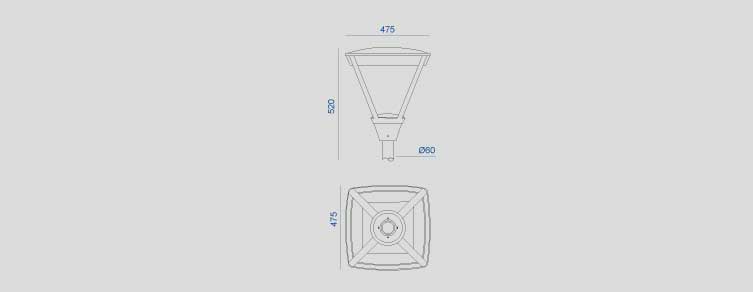

Dimensions

Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,

Downloads

  • Technical File Siena
    713.42 KB
  • Assembly instructions Siena
    681.66 KB
  • DIALUX files
    518.21 KB
  • BIM files
    611.39 KB
  • EMC certifications
    146.35 KB
  • LVD certifications
    167.9 KB
  • CE certifications
    267.32 KB

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS
  • CRI
    CRI

Regulations

  • IK10
    IK10
  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II

Locations

  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • Color NM
    Color NM

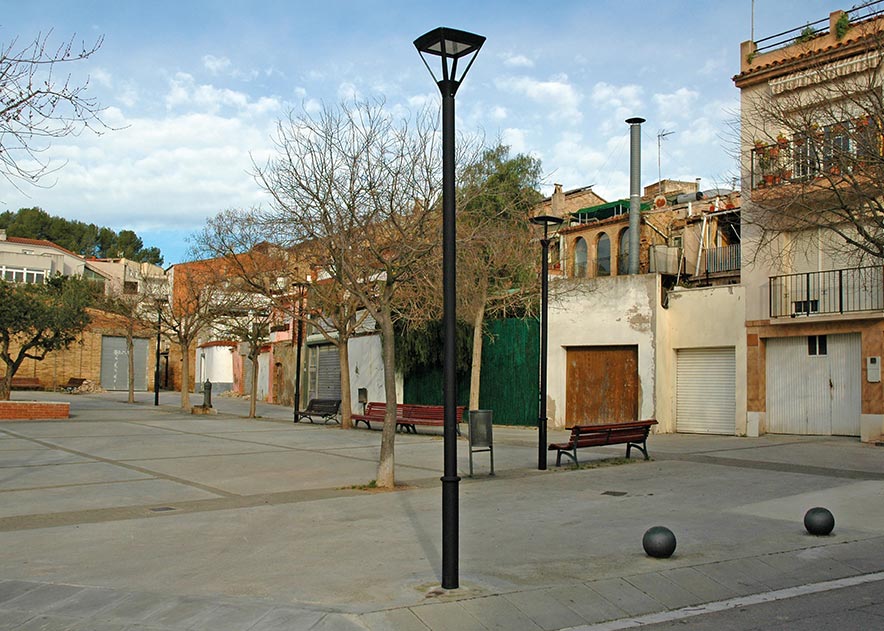

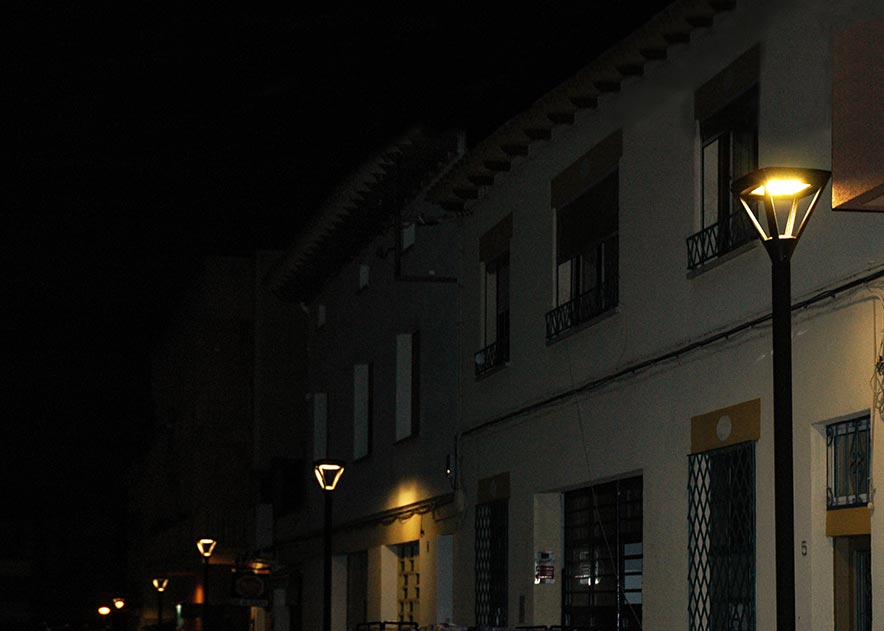

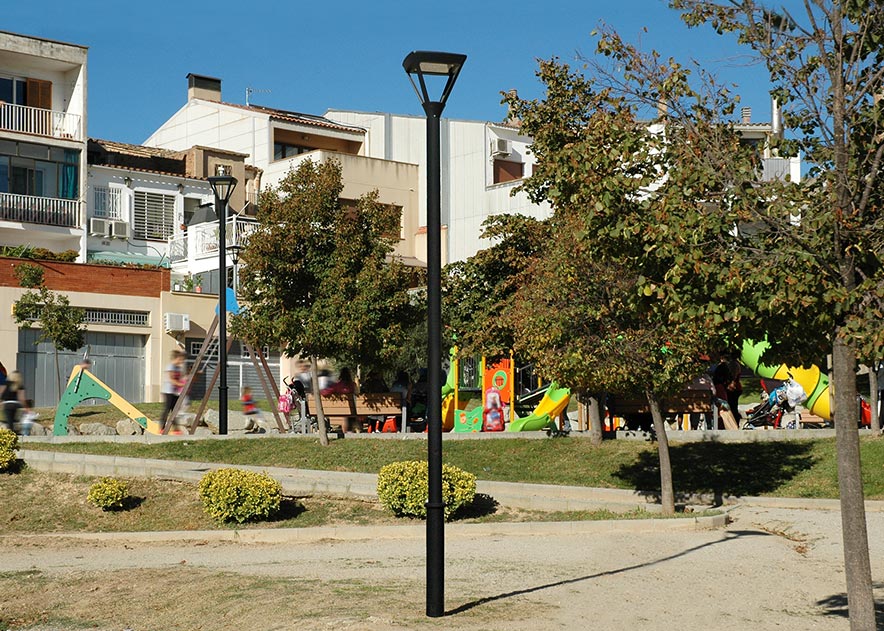

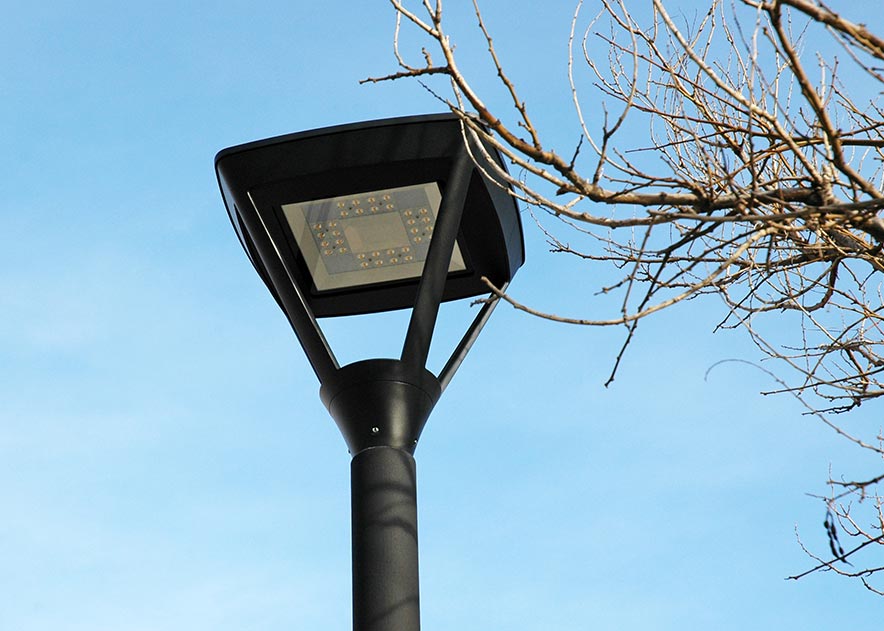

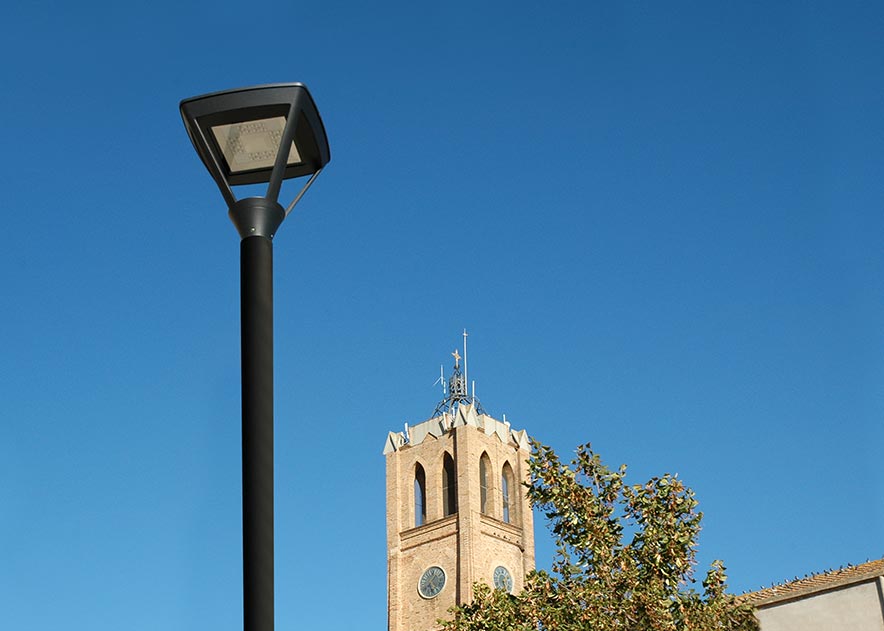

Details and View

Photometry

  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,
  • Public lighting with LED luminaires for outdoor lighting , Residential Lighting , ALSL Siena LED Luminaire ,

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K

Choose the version for
