Ref. ALMSL

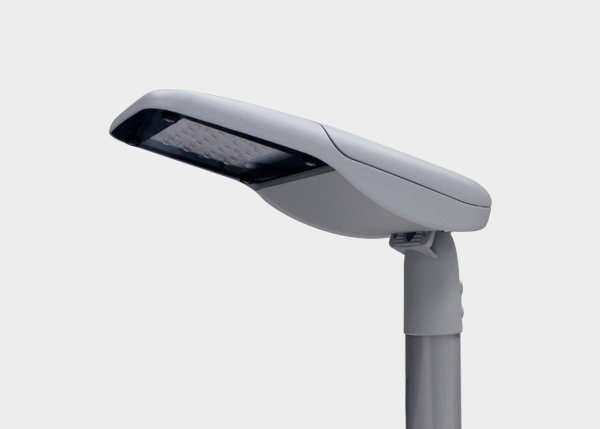

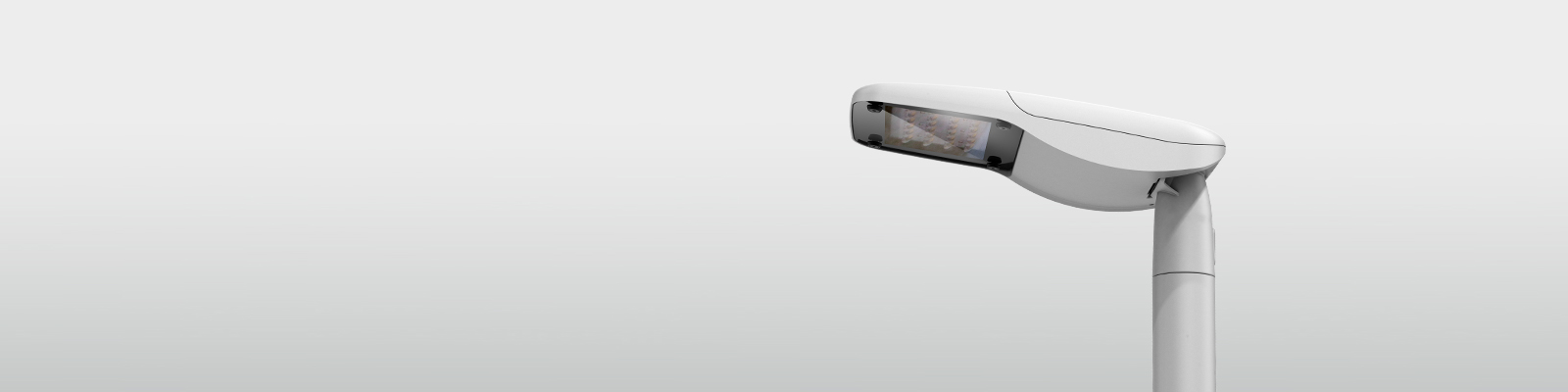

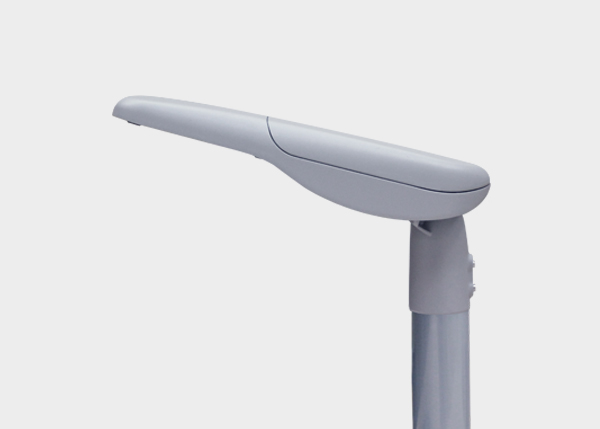

Milan S LED Luminaire

Body
High pressure die-cast aluminum. 4 mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 1 format (16 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:
    Double level with line driver or programmable timer.
    Multi-level with re-programmable timer.
    Remote management.


Light source
LED: 30 - 40 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.

Mounting Height
3 - 6 m.

Attachment
Side or top: Ø60 mm.

Adjustable
Adjustable luminaire with tilt range from -15º to 15º from center point.

See more LED Luminaires

Download Light Catalogue

TECHNICAL DATA

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALMSL Milan S LED Luminaire   ,

Dimensions

Public lighting with LED luminaires for outdoor lighting , Functional Lighting , ALMSL Milan S LED Luminaire   ,

Downloads

  • Technical File Milan S
    695.6 KB
  • Assembly instructions Milan S LED
    893.01 KB
  • DIALUX files
    346.76 KB
  • BIM files
    718.27 KB
  • IAC certification - Milan
    1.39 MB
  • EMC certifications
    38.36 KB
  • LVD certifications
    169.13 KB
  • CE certifications
    267.32 KB

Certifications

  • Certificate European Conformity
    Certificate European Conformity
  • Certificate E+
    Certificate E+
  • Certificate RoHS
    Certificate RoHS
  • RAEE Certificate
    RAEE Certificate
  • Certificate ENEC
    Certificate ENEC
  • Certificate IAC
    Certificate IAC
  • Certificate IEC
    Certificate IEC
  • Certificate QCERT-RETILAP
    Certificate QCERT-RETILAP

Specifications

  • Sustainable efficiency
    Sustainable efficiency
  • FHS
    FHS

Regulations

  • IK10
    IK10
  • Icon IP66
    Icon IP66
  • IP66
    IP66
  • Ground
    Ground
  • Class II
    Class II

Locations

  • Highways and roads
    Highways and roads
  • City and suburbs
    City and suburbs
  • Playgrounds and rural areas
    Playgrounds and rural areas

Colors

  • RAL 9022
    RAL 9022

Details and View

Color temperatures

  • Amber
    Amber
  • 3000K
    3000K
  • 4000K
    4000K
  • 5000K
    5000K

Choose the version for
