Ref. ALMXXLL

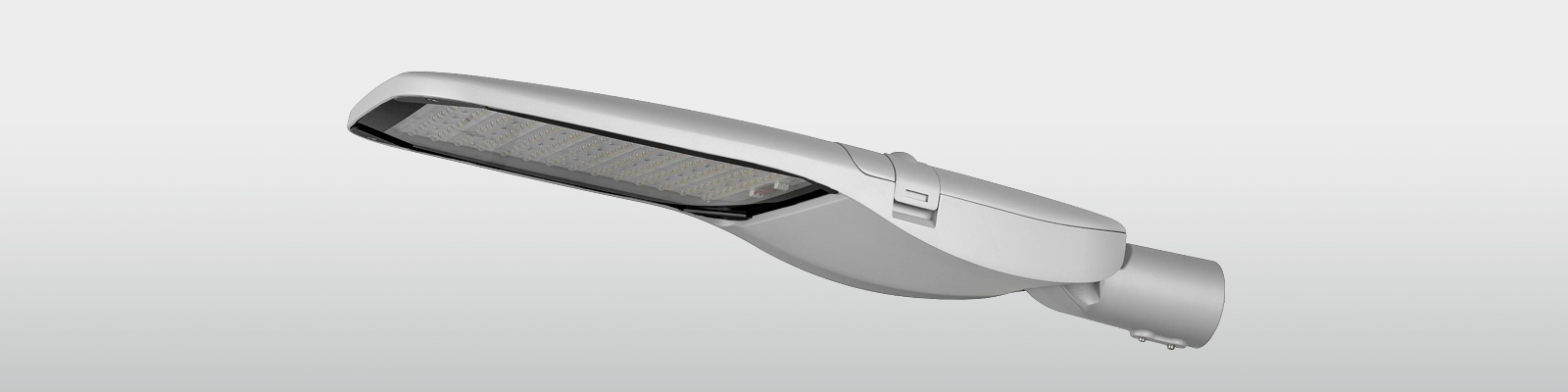

Milan XXL LED Luminaire

Body
High pressure die-cast aluminum. 4 mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 2 format (144 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:

- Double level with line driver or programmable timer.

- Multi-level with re-programmable timer.

- Remote management.

Light source
LED: 200-300 W.

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9022 color.

Mounting Height
12 - 14 m.

Attachment
Side or top: Ø76 mm.

Adjustable
Adjustable luminaire with tilt range from -15º to 15º from center point.
